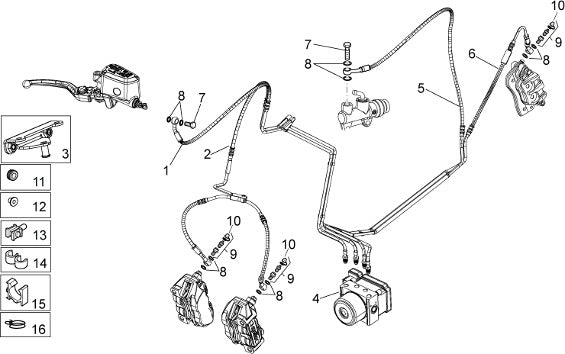

2010 2016 Norge 1200 ie 8v E3 ABS Abs Brake System
| Position | Part Number | Description |
|---|---|---|
| 1 | 883838 | Rear brake hose (#883838) |
| 2 | 883839 | Rear brake hose (#883839) |
| 3 | 886166 | METALLIC TUBE (#886166) |
| 4 | 895351 | Gearcase (#895351) |
| 5 | 883840 | Rear brake hose (#883840) |
| 6 | 883841 | Rear brake hose (#883841) |
| 7 | AP8113003 | Oil Pipe Screw (#AP8113003) |
| 8 | AP8113004 | WASHER 10x14x1,6* (#AP8113004) |
| 9 | AP8133945 | Bleeder kit (#AP8133945) |
| 10 | AP8113070 | Bleed valve cap (#AP8113070) |
| 11 | AP8120030 | Rubber Spacer (#AP8120030) |
| 12 | AP8221023 | T Bush* (#AP8221023) |
| 13 | AP8202238 | Cable-guide hook (#AP8202238) |
| 14 | AP9100519 | Spring (#AP9100519) |
| 15 | 05436530 | Cable-guide D5 (#05436530) |
| 15 | AP8201808 | Cable-guide D8 (#AP8201808) |
| 16 | AP8101595 | Hose Clamp (#AP8101595) |
