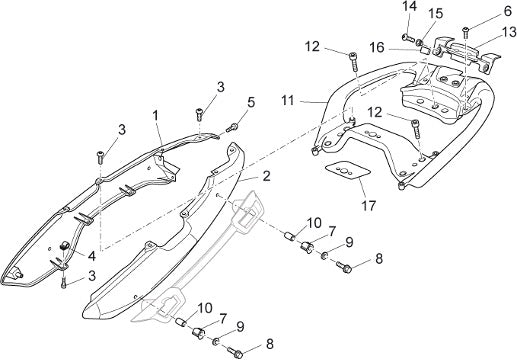

2010 2016 Norge 1200 ie 8v E3 ABS Rear Body Rear Fairing

Position Part Number Description
1 05573230 Horn (#05573230)
1 0557323000BM Horn (#0557323000BM)
1 0557323000XN2 RH rear fairing, black (#0557323000XN2)
1 0557323000YM1 Horn (#0557323000YM1)
1 0557323000YM2 Horn (#0557323000YM2)
1 05573230F2 RH rear fairing, grey (#05573230F2)
2 05573330 HORN LH (#05573330)
2 0557333000BM Horn (#0557333000BM)
2 0557333000XN2 LH rear fairing, black (#0557333000XN2)
2 0557333000YM1 Horn (#0557333000YM1)
2 0557333000YM2 Horn (#0557333000YM2)
2 05573330F2 LH rear fairing, grey (#05573330F2)
3 AP8152339 SCREW W/FLANGE (#AP8152339)
4 AP8102375 Clip (#AP8102375)
5 98682215 Hex Socket Screw M5X15 (#98682215)
6 AP8152302 SCREW W/ FLANGE (#AP8152302) USE 2B014101
7 05467330 Hook (#05467330)
8 AP8152292 Screw w/ flange M8x5 (#AP8152292)
9
10 91120924 Spacer 9X18X24 (#91120924)
11 05464330NA Handle. Black (#05464330NA)
11 884255 Rear handle P.A. (#884255)
12 98682425 Screw M8 X 25 (#98682425)
13 05464830 Cover (#05464830)
14 AP8152055 Hex socket screw (#AP8152055)
15 AP8121096 Disc cover bush (#AP8121096)
16 AP8120455 Rubber spacer (#AP8120455)
17 32944210 GUARD DECAL (#32944210)
