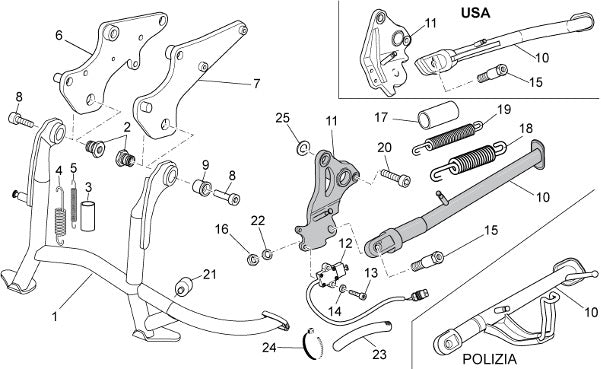

2010 2016 Norge 1200 ie 8v E3 ABS Stands
| Position | Part Number | Description |
|---|---|---|
| 1 | 883242 | Central stand WITH IP (#883242) |
| 2 | ||
| 3 | AP8178918 | Stand Spring Protection (#AP8178918) |
| 4 | AP8221317 | Lateral Stand Spring (#AP8221317) |
| 5 | AP8221318 | Internal Lateral Stand Spring (#AP8221318) |
| 6 | 883274 | Rh Plate (#883274) |
| 7 | 883251 | Lh Plate (#883251) |
| 8 | 98682530 | Screw (#98682530) USE AP8150195 |
| 9 | 05429630 | BUSHING (#05429630) |
| 10 | 883390 | Lateral stand (#883390) |
| 10 | 897602 | Lateral stand (#897602) |
| 10 | 977093 | SIDE STAND (#977093) |
| 11 | 977080 | Stand plate (#977080) |
| 11 | 977408 | STAND PLATE (#977408) |
| 12 | 639542 | SIDESTAND SWITCH (#639542) |
| 13 | 98612216 | ALLEN BOLT (#98612216) |
| 14 | 95020105 | WASHER (#95020105) |
| 15 | AP8121607 | Central stand fixing screw (#AP8121607) |
| 15 | AP8121994 | Central stand fixing bolt (#AP8121994) |
| 16 | AP8152001 | Lower Nut (#AP8152001) |
| 17 | AP8102524 | Stand Spring Protection (#AP8102524) |
| 18 | AP8221204 | Lateral Stand Spring (#AP8221204) |
| 19 | AP8221211 | Internal Lateral Stand Spring (#AP8221211) |
| 20 | 98231235 | Hex Socket Screw (#98231235) |
| 21 | AP8144487 | Drift M6x10-25x15 (#AP8144487) |
| 22 | AP8150292 | Curved Spring Washer (#AP8150292) |
| 23 | 00823923140 | THERMAL SHEATH (#00823923140) |
| 24 | 14609650 | TIE WRAP (#14609650) |
| 25 | 95008313 | Washer, 13X24X2.5 (#95008313) |
