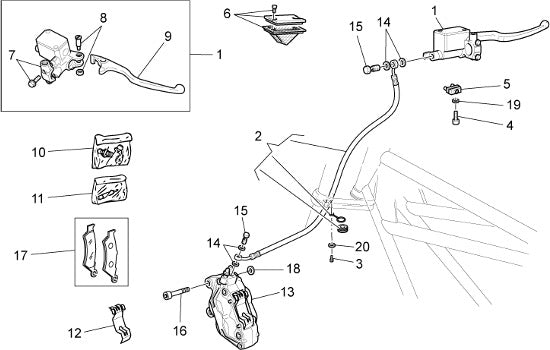

2011 2012 V7 Racer 750 E3 Front Brake System
| Position | Part Number | Description |
|---|---|---|
| 1 | 03660145 | MASTER CYL ASSY (#03660145) |
| 2 | 883581 | Brake hose (#883581) |
| 3 | AP8152277 | Screw w/flange (#AP8152277) |
| 4 | 98370412 | SCREW (#98370412) |
| 5 | 03749845 | MICRO SWITCH FRONT BRAKE (#03749845) |
| 6 | 03661145 | Master Cyl. Lid & Gasket (#03661145) |
| 7 | 03664045 | F/BRAKE LEVER MOUNT (#03664045) |
| 8 | 03604845 | FRONT BRAKE LEVER PIN (#03604845) |
| 9 | 03605645 | FRT BRAKE LEVER #03605645) (#03605645) |
| 10 | 05659230 | Spurgo-Cappuccio (#05659230) |
| 11 | 01659130 | BLEEDING PAD PIN (#01659130) |
| 12 | 01659131 | FRT CALIPER SPRING (#01659131) |
| 13 | 883303 | FRONT BRAKE CAPILER (#883303) |
| 14 | AP8113004 | WASHER 10x14x1,6* (#AP8113004) |
| 15 | 978323 | VITE (#978323) |
| 16 | AP8152385 | HEX SOCKET SCREW (#AP8152385) |
| 17 | 01654630 | BRAKE PADS, PR (#01654630) |
| 18 | 91181003 | SPACER (#91181003) |
| 19 | 95021104 | WASHER (#95021104) |
| 20 | 95008306 | WASHER (#95008306) |
