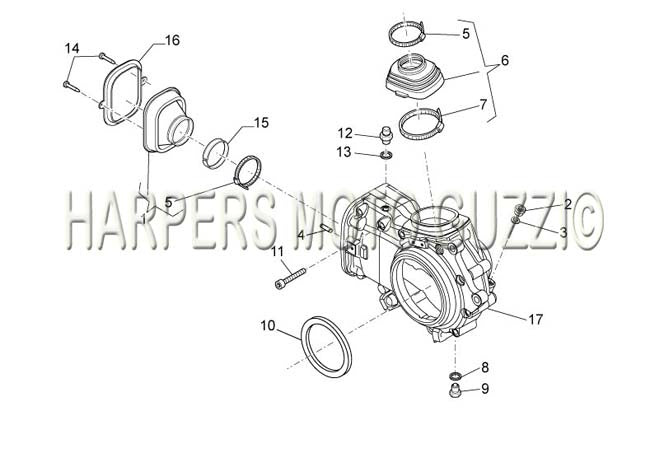

2011 2013 Stelvio 1200 8v Std NTX Frame Trans Cpl Cage
| Position | Part Number | Description |
|---|---|---|
| 1 | 5358330 | #01 Upper dust cover (#5358330) |
| 2 | 5351230 | #02 Oil plug M12x1,5 (#5351230) |
| 3 | 90718120 | WASHER, COPPER (#90718120) |
| 4 | 95510620 | Pin 6X20 (#95510620) |
| 5 | 5358130 | #05 Hose clamp (#5358130) |
| 6 | 5358030 | #06 Upper dust cover (#5358030) |
| 7 | 5358230 | #07 Hose clamp (#5358230) |
| 8 | 1528930 | #26 Gasket 10x18x1,5 (#1528930) |
| 9 | 31003766 | DRAIN PLUG (#31003766) |
| 10 | 90408511 | SEAL 85X110X8 Basl (#90408511) |
| 11 | 98680450 | ALLEN BOLT (#98680450) |
| 12 | 5206530 | #12 Breather plug (#5206530) |
| 13 | 10528900 | CRUSH WASHER, COPPER (#10528900) |
| 14 | 99210406 | Screw M3X5 (#99210406) |
| 15 | 5358530 | #15 Ring (#5358530) |
| 16 | 5358630 | #16 Gasket (#5358630) |
| 17 | 978392 | TRANSMISSION HOUSING (#978392) |
