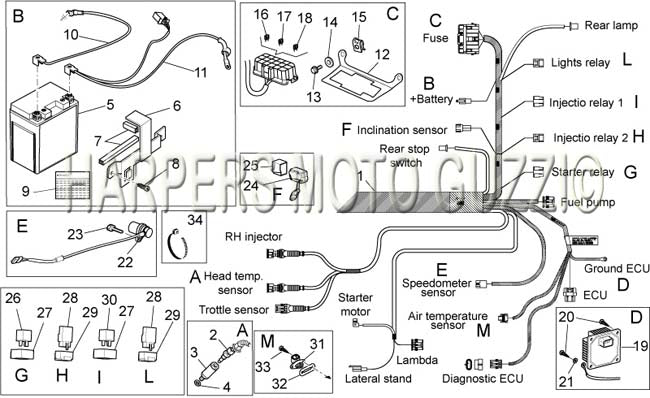

2011 V7 Racer 750 Electrical System II
| Position | Part Number | Description |
|---|---|---|
| 1 | 883077 | Main Wiring Harness - Nevada (#883077) |
| 2 | 29729461 | OIL TEMP SENSOR (#29729461) |
| 3 | 03163330 | SENSOR HOLDER A (#03163330) |
| 4 | 95004210 | WASHER (#95004210) |
| 5 | 640201 | BATTERY 12V - 12Ah (#640201) |
| 6 | 32418210 | Clamp - Breva (#32418210) |
| 7 | AP8144538 | Gasket (#AP8144538) |
| 8 | AP8152329 | Self-Tap Screw (#AP8152329) |
| 9 | 32517710 | Decal (#32517710) |
| 10 | 32747910 | Ground Lead - Breva (#32747910) |
| 11 | 883191 | Wiring - Breva (#883191) |
| 12 | 883161 | PLATE (#883161) |
| 13 | 98682212 | Hex Socket Screw (#98682212) |
| 14 | 95100059 | WASHER (#95100059) |
| 15 | AP8102375 | Clip (#AP8102375) |
| 16 | 290860 | LAMELLAR FUSE 15A (#290860) |
| 17 | AP8127346 | FUSE 3 A (#AP8127346) |
| 18 | 28742562 | FUSE 30A (#28742562) |
| 19 | 883798 | ELETTRONIC INJECT.DEVICE (#883798) |
| 19 | CM2271024 | ECU (#CM2271024) |
| 21 | 95129101 | WASHER FUEL PUMP (#95129101) |
| 22 | AP8124528 | Speedometer Sensor Complete (#AP8124528) |
| 23 | AP8152277 | Screw w/flange (#AP8152277) |
| 24 | 584509 | Fuel cut off/ tilt sensor (#584509) |
| 25 | AP8144046 | Fuel Tank Rubber (#AP8144046) |
| 26 | 29732550 | RELAY (#29732550) |
| 27 | AP8220546 | Relay Rubber (#AP8220546) |
| 28 | AP8124869 | INJECTION RELAY (#AP8124869) USE #895481 |
| 29 | AP8220283 | Rubber Spacer (#AP8220283) |
| 30 | AP8224462 | STARTER RELAY 12V20A GRISO-NORGE-BREVA (#AP8224462) |
| 31 | 30729330 | AIR TEMP SENSOR (#30729330) |
| 32 | 30027931 | GASKET (#30027931) |
| 33 | AP8150421 | Self-Tap Screw (#AP8150421) |
| 34 | 14609650 | TIE WRAP (#14609650) |
| 34 | 49609601 | TIE STRAP (#49609601) |
