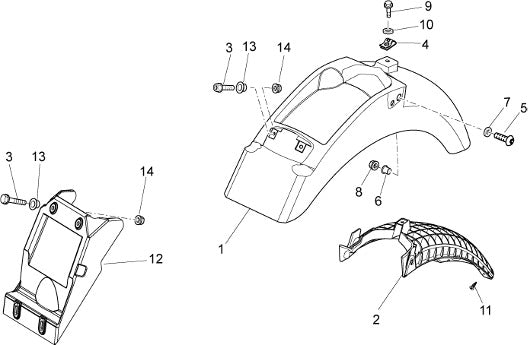

2012 2013 V7 Special stone E3 750 Rear Body I Mudguard
| Position | Part Number | Description |
|---|---|---|
| 1 | 978946 | REAR FENDER (#978946) |
| 1 | 97894600XB3 | Rear mudguard, white (#97894600XB3) |
| 1 | 97894600XN2 | Rear mudguard, black (#97894600XN2) |
| 1 | 97894600XN6 | Rear mudguard, black (#97894600XN6) |
| 1 | 97894600XR7 | Rear mudguard, red (#97894600XR7) |
| 2 | 978947 | REAR COVER (#978947) |
| 3 | AP8152278 | #12 Screw w/ flange M6x16* (#AP8152278 ) |
| 4 | 254485 | SPRING PLATE (M6) (#254485) |
| 5 | 98370831 | Screw (#98370831) |
| 6 | 91120806 | SPACER (#91120806) |
| 7 | 95005310 | WASHER (#95005310) |
| 8 | 92640708 | DADO IX NY M8X8,3 BASSO (#92640708) |
| 9 | AP8152279 | Screw w/flange (#AP8152279) |
| 10 | 91180601 | Spacer (#91180601) |
| 11 | AP8152329 | Self-Tap Screw (#AP8152329) |
| 12 | B063167 | MUDGUARD PLATE (#B063167) |
| 13 | AP8121032 | Bushing (#AP8121032) |
| 14 | AP8152299 | Self-Locking Nut (#AP8152299) |
