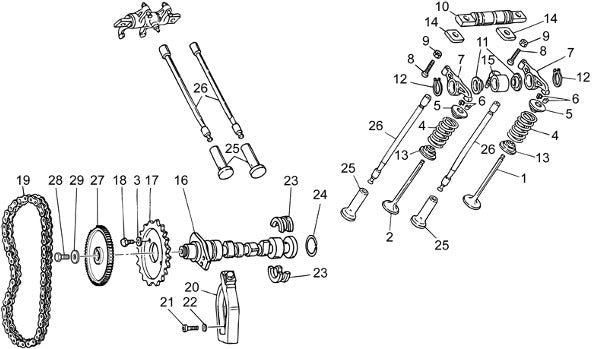

2012 2013 V7 Special stone E3 750 Timing System
| Position | Part Number | Description |
|---|---|---|
| 1 | 20036020 | Intake Valve (#20036020) |
| 2 | 20036120 | Exhaust Valve (#20036120) |
| 3 | 23217800 | WASHER A (#23217800) |
| 4 | 27037521 | Outer Valve Spring (#27037521) |
| 5 | 31038015 | Upper Cup (#31038015) |
| 6 | 61038100 | HALF CONE (#61038100) |
| 7 | 19030500 | ROCKER (#19030500) |
| 8 | 19034000 | ADJ.SCREW (#19034000) |
| 9 | 92602406 | ADJ SCREW NUT (#92602406) |
| 10 | 19032080 | PIN (#19032080) |
| 11 | 32032310 | Thrust Washer - Breva (#32032310) |
| 12 | 90271018 | CIRCLIP (#90271018) |
| 13 | 31037015 | Lower Cup (#31037015) |
| 14 | 19032980 | SPACER (#19032980) |
| 15 | 19027500 | SLEEVE (#19027500) |
| 16 | 32053410 | Camshaft - Breva (#32053410) |
| 17 | 32054510 | Timing System Gear - Breva (#32054510) |
| 18 | 61054900 | SCREW (#61054900) |
| 19 | 19058021 | CHAIN (#19058021) |
| 20 | 19058220 | CHAIN TENSIONER (#19058220) |
| 21 | 98882316 | Screw (#98882316) |
| 22 | 95129115 | WASHER (#95129115) |
| 23 | 19055700 | 1/2 BEARING, CAM SHAFT (#19055700) |
| 24 | 90353029 | RING (#90353029) |
| 25 | 19045861 | TAPPET A (#19045861) |
| 26 | 31045015 | PUSHROD A (#31045015) |
| 27 | 887528 | PHONIC WHEEL (#887528) |
| 28 | 98054422 | BOLT (#98054422) |
| 29 | 95100244 | WASHER (#95100244) |
