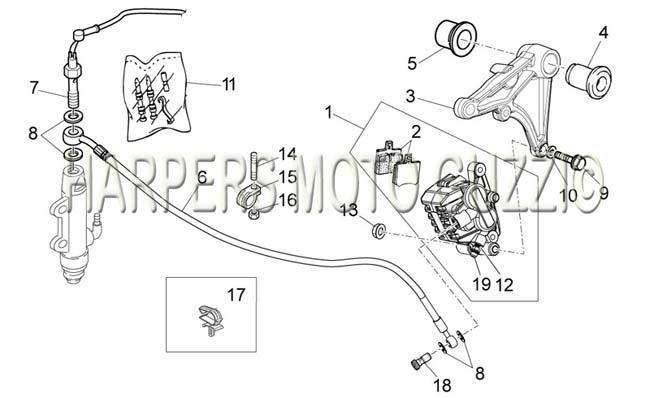

2012 Nevada S Anniversario 750 Rear Brake Caliper
| Position | Part Number | Description |
|---|---|---|
| 1 | 887449 | Rear brake caliper (#887449) |
| 2 | 31654681 | Pads Pair (#31654681) NLA USE FA266 |
| 3 | 887431 | Support plate (#887431) |
| 4 | 31634281 | Bush (#31634281) |
| 5 | 32634160 | Spacer - Nevada (#32634160) |
| 6 | 32657560 | Brake Pipe - Nevada (#32657560) |
| 7 | 32657060 | Switch - Nevada (#32657060) |
| 8 | ||
| 9 | AP8152288 | Screw w/flange (#AP8152288) |
| 10 | 61270300 | WASHER (#61270300) |
| 11 | AP8133799 | Pins+Caliper springs (#AP8133799) |
| 12 | AP8133800 | Air bleed valve (#AP8133800) |
| 13 | AP8152300 | Self-Locking Nut (#AP8152300) |
| 14 | 96451316 | Stud Bolt M6 X 16 (#96451316) |
| 15 | AP8134167 | Hose Clamp (#AP8134167) |
| 16 | AP8152299 | Self-Locking Nut (#AP8152299) |
| 17 | AP8221310 | Fairlead d10,6 (#AP8221310) |
| 18 | 978323 | VITE (#978323) |
| 19 | AP8213575 | Bleed valve cap (#AP8213575) |
