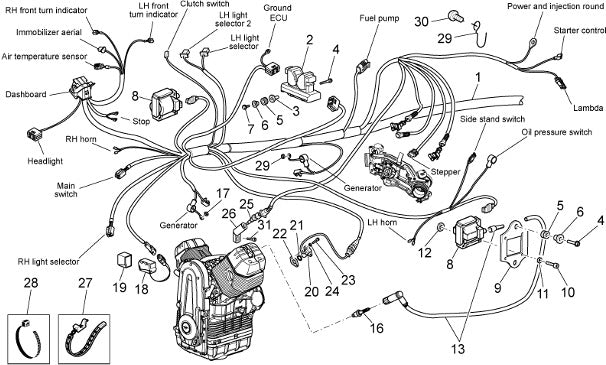

2015 2017 Griso S.E. 1200 8v E3 Electrical System I
| Position | Part Number | Description |
|---|---|---|
| 1 | 978407 | Main wiring harness (#978407) |
| 2 | 883900 | ECU (#883900) |
| 3 | 05729230 | Bushing (#05729230) |
| 4 | AP8152279 | Screw w/flange (#AP8152279) |
| 5 | AP8120030 | Rubber Spacer (#AP8120030) |
| 6 | AP8221023 | T Bush* (#AP8221023) |
| 7 | AP8152282 | Screw w/ flange M6x3 (#AP8152282) |
| 8 | 30716500 | IGNITION COIL (#30716500) |
| 9 | 05716730 | Coil Holder (#05716730) |
| 10 | 98682125 | Screw (#98682125) |
| 11 | 95008204 | Washer (#95008204) |
| 12 | 92630104 | NUT (#92630104) |
| 13 | 640912 | HT wire (#640912) USE 642243 |
| 16 | 639687 | SPARK PLUG CR8EKB (NGK) (#639687) |
| 17 | AP8152299 | Self-Locking Nut (#AP8152299) |
| 18 | AP8124266 | #14 Inclination sensor (#AP8124266 ) |
| 19 | AP8144046 | Fuel Tank Rubber (#AP8144046) |
| 20 | 01721600 | TIMING SENSOR (#01721600) |
| 21 | 90706141 | O RING (#90706141) USE 847180 |
| 22 | 01722700 | Gasket (#01722700) |
| 22 | 01722701 | SENSOR GSKT .4MM (#01722701) |
| 22 | 01722702 | SENSOR GSKT .6MM (#01722702) |
| 22 | 01722703 | SENSOR GSKT .8MM (#01722703) |
| 22 | 01722704 | SESOR GSKT 1.MM (#01722704) |
| 22 | 01722705 | SENSOR GSKT 1.5MM (#01722705) |
| 22 | 29722760 | SENSOR GASKET (#29722760) |
| 23 | 98682212 | Hex Socket Screw (#98682212) |
| 24 | 95008205 | Washer 5.3mm (#95008205) |
| 25 | 29729461 | OIL TEMP SENSOR (#29729461) |
| 26 | 976556 | Support (#976556) |
| 27 | 06609600 | HOSE CLAMP (#06609600) |
| 28 | 14609650 | TIE WRAP (#14609650) |
| 28 | 49609601 | TIE STRAP (#49609601) |
| 28 | 93304390 | TIE WRAP (#93304390) |
| 29 | AP8121475 | Fairlead (#AP8121475) |
| 30 | AP8152285 | Screw w/ flange (#AP8152285) |
| 31 | 98683520 | SCREW (#98683520) |
