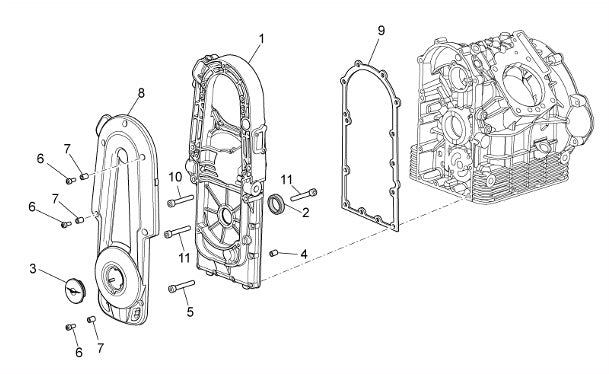

2015 2017 Griso S.E. 1200 8v E3 Engine Crank Case II
| Position | Part Number | Description |
|---|---|---|
| 1 | 976631 | Timing system cover (#976631) |
| 2 | 90412237 | SEAL 22X35X7 Viton (#90412237) |
| 3 | 5002130 | #03 Plug (#5002130) |
| 4 | 825597 | Nozzle for carter (#825597) |
| 5 | ||
| 6 | 98682316 | ALLEN BOLT (#98682316) |
| 7 | 91120606 | Bushing 6,8x8,8x5,8 (#91120606) |
| 8 | 5001630 | #12 Alternator cover grey (#5001630) |
| 9 | 976478 | METAL TIMING COVER GASKET(#976478) |
| 10 | 98620455 | SCREW (#98620455) |
| 11 | 98682330 | Screw, 6mmx30mm (#98682330) |
