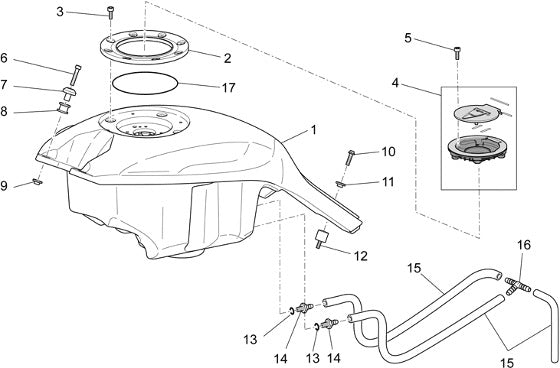

2015 2017 Griso S.E. 1200 8v E3 Fuel Tank
| Position | Part Number | Description |
|---|---|---|
| 1 | ||
| 1 | 88797200YE3 | Fuel tank, Green (#88797200YE3) |
| 1 | 88797200YR2 | Fuel tank, Red (#88797200YR2) |
| 2 | 06102300 | GHIERA TAPPO SERBATOIO (#06102300) |
| 3 | 976614 | SCREW (CYLINDER HEAD) (#976614) |
| 4 | 887465 | (#887465) |
| 5 | B043864 | SCREW (CYLINDER HEAD) (#B043864) |
| 6 | 98680340 | Screw (#98680340) |
| 7 | 06107100 | BOCCOLA SERBATOIO OR TANK BUSHING (#06107100) |
| 8 | AP8144328 | Rubber spacer (#AP8144328) |
| 9 | AP8121075 | T. Bushing (#AP8121075) |
| 10 | AP8152280 | Screw (#AP8152280) |
| 11 | 06704901 | BUSSOLA FISS CHIUSURA BATTERIA (#06704901) |
| 12 | 93222023 | Silent - Block (#93222023) |
| 13 | 2B001203 | Connector Pipe (#2B001203) |
| 14 | AP8120965 | O-Ring (#AP8120965) |
| 15 | AP8220263 | Breather Pipe (#AP8220263) |
| 16 | AP8104666 | Tee union D.5 (#AP8104666) |
| 17 | 977062 | O RING (#977062) |
