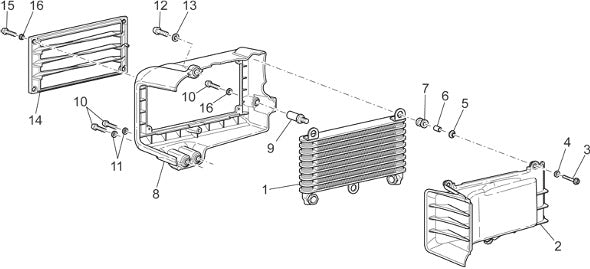

2015 2017 Griso S.E. 1200 8v E3 Oil Radiator
| Position | Part Number | Description |
|---|---|---|
| 1 | 06162000 | RADIATORE OLIO (#06162000) |
| 2 | 06583200 | CONVOGLIATORE INT RADIATORE (#06583200) |
| 3 | AP8152281 | Screw w/ flange M6x30* (#AP8152281) |
| 4 | 95005306 | WASHER (#95005306) |
| 5 | AP8121032 | Bushing (#AP8121032) |
| 6 | 91180711 | Spacer (#91180711) |
| 7 | AP8120030 | Rubber Spacer (#AP8120030) |
| 8 | 06583000 | GRISO OIL COOLER COVER (#06583000) |
| 9 | 06583600 | DISTANZIALE COPERCHIO RADIATORE (#06583600) |
| 10 | 98690440 | BOLT (#98690440) |
| 11 | 14615901 | WASHER (#14615901) |
| 12 | 98690540 | VITE TCEI IX M10X40 (#98690540) |
| 13 | 19149800 | WASHER (#19149800) USE AP8152220 |
| 14 | 06582600 | GRISO OIL CoOLER SCREEN (#06582600) |
| 15 | 98230512 | SCREW (#98230512) USE 831153 |
| 16 | AP8121811 | T bush * (#AP8121811) |
