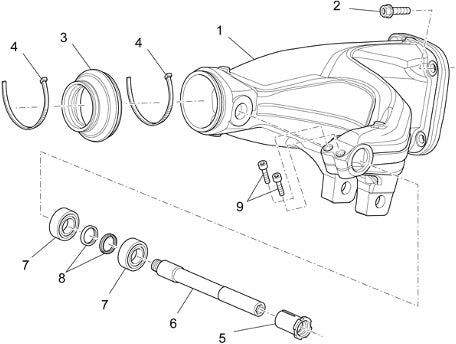

2015 2017 Griso S.E. 1200 8v E3 Swing Arm
| Position | Part Number | Description |
|---|---|---|
| 1 | 978350 | MACHINED REAR ARM (#978350) |
| 2 | AP8152318 | Screw w/ flange (#AP8152318) |
| 3 | 05548030 | Rubber Bellows (#05548030) |
| 4 | 93304390 | TIE WRAP (#93304390) |
| 5 | 05547130 | Bush (#05547130) |
| 6 | 05547030 | Pin (#05547030) |
| 7 | 92249224 | ROLLER BEARING (#92249224) |
| 8 | 05547930 | Gasket Ring or Seal (#05547930) |
| 9 | 98682325 | BOLT (#98682325) |
