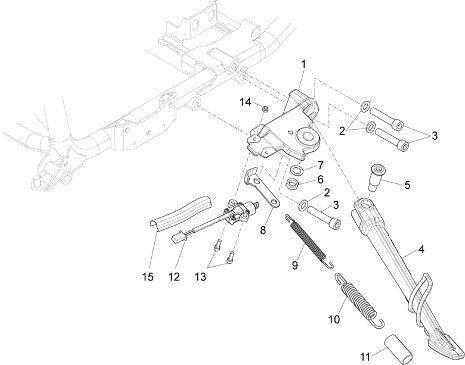

2015 California 1400 Custom E3 ABS Central Stand
| Position | Part Number | Description |
|---|---|---|
| 1 | B063430 | COMPLETE SIDE STAND PLATE (#B063430) |
| 2 | AP8152220 | Washer (#AP8152220) |
| 3 | 98680545 | Screw (#98680545) |
| 4 | B063786 | SIDE STAND ASSY (#B063786) |
| 5 | B063444 | SIDE STAND ROTATION PIVOT (#B063444) |
| 6 | AP8152135 | Nut M12x1,25 (#AP8152135) |
| 7 | 95129240 | WASHER A (#95129240) |
| 8 | 851550 | PLATE (#851550) |
| 9 | AP8121014 | Coil Pull Spring (#AP8121014) |
| 10 | AP8121015 | Lateral stand external spring (#AP8121015) |
| 11 | AP8102524 | Stand Spring Protection (#AP8102524) |
| 12 | 639542 | SIDESTAND SWITCH (#639542) |
| 13 | 98612216 | ALLEN BOLT (#98612216) |
| 14 | AP8150311 | Low self-locking nut M5 (#AP8150311) |
| 15 | 00823923140 | THERMAL SHEATH (#00823923140) |
