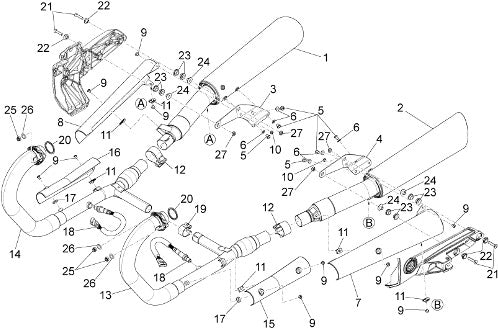

2015 California 1400 Touring E3 ABS Exhaust Pipe
| Position | Part Number | Description |
|---|---|---|
| 1 | B064126 | EXTERNAL SOUDPROOF (#B064126) |
| 2 | B064127 | EXTERNAL SOUDPROOF (#B064127) |
| 3 | 887590 | Right muffler support bracket (#887590) |
| 4 | 887589 | Left muffler support bracket (#887589) |
| 5 | AP8152055 | Hex socket screw (#AP8152055) |
| 6 | 95008308 | Washer (#95008308) |
| 7 | B063595 | SILENCER PROTECTION (#B063595) |
| 8 | B063596 | SILENCER PROTECTION (#B063596) |
| 9 | 884029 | SCREW (CYLINDER HEAD) (#884029) |
| 10 | AP8152313 | Captive nut M6 (#AP8152313) |
| 11 | 254485 | SPRING PLATE (M6) (#254485) |
| 12 | B063293 | Ø 48 METAL PIPE CLAMP (#B063293) |
| 13 | 2B000145 | Left cylinder exhaust pipe (#2B000145) |
| 14 | 2B000146 | Right cylinder exhaust pipe (#2B000146) |
| 15 | B063593 | SILENCER PROTECTION (#B063593) |
| 16 | B063594 | SILENCER PROTECTION (#B063594) |
| 17 | 876879 | ELASTIC SPACER (#876879) |
| 18 | 584344 | LAMBDA PROBE (#584344) |
| 19 | B063292 | Ø 37 METAL PIPE CLAMP (#B063292) |
| 20 | 976376 | GRISO EXHAUST GASKET (#976376) |
| 21 | B063114 | M8 X 40 COUNTERSUNK SCREW (#B063114) |
| 22 | 887816 | Bush (#887816) |
| 23 | AP8144558 | Rubber spacer (#AP8144558) |
| 24 | AP8121510 | AP8121510 |
| 25 | 92660021 | Nut (#92660021) |
| 26 | 14615901 | WASHER (#14615901) |
| 27 | AP8152300 | Self-Locking Nut (#AP8152300) |
