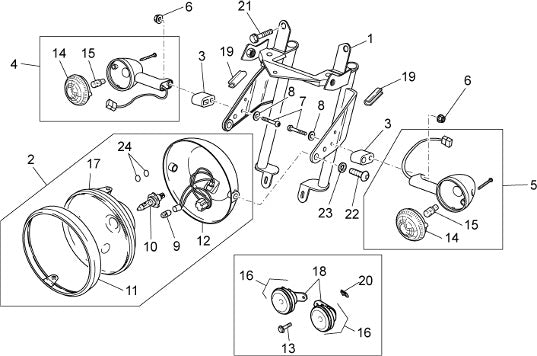

2015 V7 Racer 750 E3 Front Lights
| Position | Part Number | Description |
|---|---|---|
| 1 | 32506360 | Headlight Support Group - Neva (#32506360) |
| 2 | 978311 | Headligh (#978311) |
| 3 | 32753410 | Spacer - Breva (#32753410) |
| 4 | B063800 | TURN SIGNAL (B063800) (#B063800) |
| 5 | B063801 | FRONT INDICATORS LEFT (#B063801) |
| 6 | 92787006 | Nut, 6mmx1.0 (#92787006) |
| 7 | 98370655 | Hex Socket Screw (#98370655) |
| 8 | 95021206 | Washer (#95021206) |
| 9 | ||
| 10 | 292723 | BULB 12V-55/60W (#292723) |
| 11 | 640598 | CHROMIUM PLATED RIM (#640598) |
| 12 | 981149 | Head lamp shell (#981149) |
| 13 | AP8152278 | #12 Screw w/ flange M6x16* (#AP8152278 ) |
| 14 | 32753711 | TURN SIGNAL LENS, AMBER (#32753711) |
| 15 | 93450127 | T/SIG. BULB - CLEAR (#93450127) |
| 16 | 890979 | Horn (#890979) |
| 17 | 06740400 | HL OPTICAL GROUP (#06740400) |
| 18 | 01744200 | Clamp (#01744200) |
| 19 | 00823931055 | GASKET (#00823931055) |
| 20 | 254485 | SPRING PLATE (M6) (#254485) |
| 21 | 98880540 | Screw, 10mmx40mm (#98880540) |
| 22 | 98692420 | Screw (#98692420) |
| 23 | 95005308 | WASHER M8 (#95005308) |
| 24 | 883417 | SEAL RING (O-RING) (#883417) |
