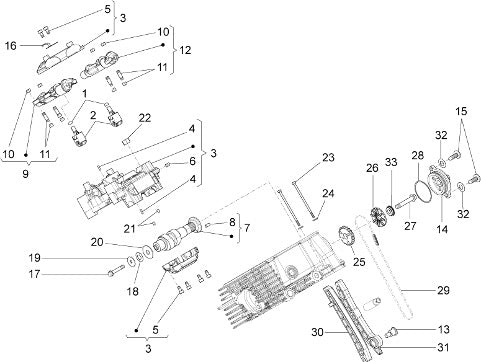

2016 Audace 1400 E4 ABS Rh Cylinder Timing System I
| Position | Part Number | Description |
|---|---|---|
| 1 | 878574 | SPERICAL PAD (#878574) |
| 2 | B016785 | COMPLETE ROLLER CAM FOLLOWER (#B016785) |
| 3 | 887161 | Rockers axle support DX (#887161) |
| 4 | 872759 | Dowel (#872759) |
| 5 | 015792 | SCREW (#015792) |
| 6 | 842360 | TAPER THREADED M6X10 (#842360) |
| 7 | B014576 | Cam axle (#B014576) |
| 8 | 976589 | REFERENCE DOWELL (#976589) |
| 9 | B0136034 | Rocker arm assy. (#B0136034) |
| 10 | 879916 | LOW HEXAGONAL NUT (#879916) |
| 11 | 879707 | SCREW TIP ASSY (#879707) |
| 12 | B0136054 | ROCK ARM ASSY. (#B0136054) |
| 13 | 878868 | SCREW SPACER FOR CHAIN TIGHTENING ROD (#878868) |
| 14 | 2A000082 | Oil breather cover (#2A000082) |
| 15 | B016796 | CONVEX HEAD SCREW TORX M5X16 (#B016796) |
| 16 | B013661 | SHEET (#B013661) |
| 17 | 414837 | FLANGED HEX HEAD SCREW (#414837) |
| 18 | 879938 | BELLEVILLE WASHER (#879938) |
| 19 | 879936 | CALIBRATED RING (#879936) |
| 20 | 879937 | CALIBRATED RING (#879937) |
| 21 | B013552 | NEEDLE (#B013552) |
| 22 | 825694 | NUT (#825694) |
| 23 | 487444 | SCREW (#487444) |
| 24 | 976674 | Flat washer (#976674) |
| 25 | 976350 | Ring Gear (#976350) |
| 26 | 2A000080 | Blow-by centrifugal separator (#2A000080) |
| 27 | 1A000425 | CAM BOLT (#1A000425) |
| 28 | 880965 | Gasket ring (#880965) |
| 29 | 976341 | TIMING CHAIN (#976341) |
| 30 | 976338 | Chain Guide Plate (#976338) |
| 31 | 976337 | MOBILE SLIDING SHOE (#976337) |
| 32 | 95129100 | WASHER (#95129100) |
| 33 | 2A000081 | SPACER (#2A000081) |
