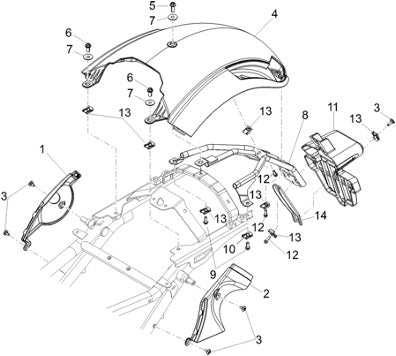

2016 California 1400 Corazzieri E3 ABS Body Rear Mudguard
| Position | Part Number | Description |
|---|---|---|
| 1 | B063116 | RIGHT SHOCK ABSORBER COVER (#B063116) |
| 1 | B06311600XN2 | R.H. DW. BODY SIDE (#B06311600XN2) |
| 2 | B063117 | LEFT SHOCK ABSORBER COVER (#B063117) |
| 2 | B06311700XN2 | L.H. DW. BODY SIDE (#B06311700XN2) |
| 3 | AP8152339 | SCREW W/FLANGE (#AP8152339) |
| 4 | 887487 | REAR MUDGUARD (#887487) |
| 4 | 88748700XN2 | Rear mudguard, black (#88748700XN2) |
| 5 | AP8152285 | Screw w/ flange (#AP8152285) |
| 6 | AP8152273 | Screw w/flange (#AP8152273) |
| 7 | AP8121114 | T bush (#AP8121114) |
| 8 | B063302 | MUDGUARD FRAME (#B063302) |
| 9 | AP8152278 | #12 Screw w/ flange M6x16* (#AP8152278 ) |
| 10 | 254485 | SPRING PLATE (M6) (#254485) |
| 11 | B063303 | REAR NUMBER PLATE HOLDER (#B063303) |
| 13 | AP8102375 | Clip (#AP8102375) |
| 14 | B063870 | REAR NUMBER PLATE HOLDER (#B063870) |
