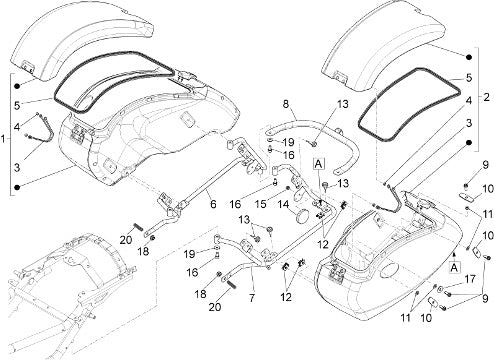

2016 California 1400 Corazzieri E3 ABS Body Side Cases
| Position | Part Number | Description |
|---|---|---|
| 1 | 2B003618 | Drilled RH black pannier (#2B003618) |
| 2 | 2B003619 | Drilled LH black pannier (#2B003619) |
| 3 | AP8201855 | Rear fairing cable (#AP8201855) |
| 4 | AP8706322 | Bush (#AP8706322) |
| 5 | B063587 | BAG GASKET (#B063587) |
| 6 | 887946 | RIGHT BAG SUPPORT (#887946) |
| 7 | 887945 | LEFT BAG SUPPORT (#887945) |
| 8 | B063289 | UNION TUBE WITH IP (#B063289) |
| 8 | B063632 | UNION TUBE (#B063632) |
| 9 | AP8152286 | SCREW W/FLANGE (#AP8152286) |
| 10 | B063932 | BAGS FIXING PLATE (#B063932) |
| 11 | AP8120592 | Washer (#AP8120592) |
| 12 | 575268 | PLATE (#575268) |
| 13 | AP8220238 | Rubber spacer * (#AP8220238) |
| 14 | AP8224164 | Rear Reflector, Red (#AP8224164) |
| 15 | AP8152306 | Self-Locking Nut (#AP8152306) |
| 16 | 98682416 | Hex Socket Screw (#98682416) USE 319165 |
| 17 | AP8150018 | Washer (#AP8150018) |
| 18 | AP8152300 | Self-Locking Nut (#AP8152300) |
| 19 | 14615901 | WASHER (#14615901) |
| 20 | B064079 | Threaded pin (#B064079) |
