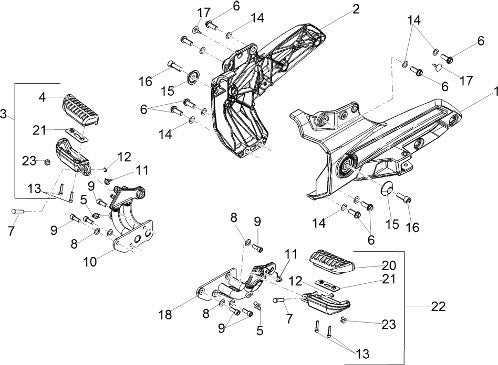

2016 California 1400 Corazzieri E3 ABS Foot Rests
| Position | Part Number | Description |
|---|---|---|
| 1 | 88733100XNB | LH footrest support (#88733100XNB) |
| 2 | 88733000XNB | RH footrest support (#88733000XNB) |
| 3 | 2B001739 | RH COMPLETE FOOTBOARD (#2B001739) |
| 4 | 2B001587 | RH FOOTREST RUBBER (#2B001587) |
| 5 | B063907 | FOOTREST PIN (#B063907) |
| 6 | AP8152385 | HEX SOCKET SCREW (#AP8152385) |
| 7 | CM228401 | PIN (#CM228401) |
| 8 | 95008308 | Washer (#95008308) |
| 9 | 98682420 | Screw (#98682420) |
| 10 | 2B001855 | RH FOOTBOARD/BRAKE LEVER SUPP.WITH I.P (#2B001855) |
| 11 | 2B002347 | TORSION SPRING (#2B002347) |
| 12 | AP8152409 | STOP RING (#AP8152409) |
| 13 | 98612225 | SCREW (#98612225) |
| 14 | AP8150292 | Curved Spring Washer (#AP8150292) |
| 15 | 851821 | Ring nut (#851821) |
| 16 | 98682530 | Screw (#98682530) USE AP8150195 |
| 17 | AP8120001 | Rubber spacer (#AP8120001) |
| 18 | 2B001857 | LH FOOTBOARD/GEAR LEVER SUPP.WITH I.P. (#2B001857) |
| 20 | 2B001588 | LH FOOTREST RUBBER (#2B001588) |
| 21 | 2B001733 | RUBBER FOOTREST SUPP.PLATE ASSY (#2B001733) |
| 22 | 2B00160200YE4 | [...] (#2B00160200YE4) |
| 23 | 30441005 | FOOTREST PIN (#30441005) |
