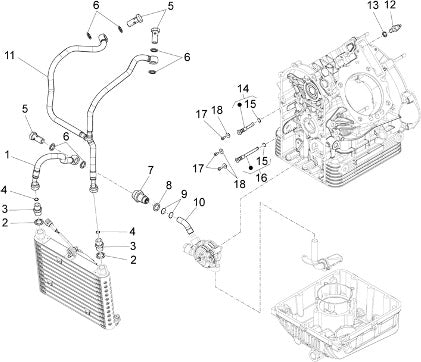

2016 California 1400 Corazzieri E3 ABS Lubrication
| Position | Part Number | Description |
|---|---|---|
| 1 | 887951 | OIL RADIATOR DELIVERY PIPE (#887951) |
| 2 | 01154230 | GASKET (#01154230) |
| 3 | 01161331 | REDUCER (#01161331) |
| 4 | 899064 | O-RING (#899064) |
| 5 | 874223 | SCREW FOR PIPE FITTING (#874223) |
| 6 | 976597 | GASKET (#976597) |
| 7 | 874669 | Nipple (#874669) |
| 8 | 976592 | GASKET (#976592) |
| 9 | 434947 | RING (#434947) |
| 10 | 874646 | PIPE (#874646) |
| 11 | 887950 | HEAD CYLINDER DELIVERY OIL PIPE (#887950) |
| 12 | 641541 | MIN.PRESSURE OIL SWITCH N.C. (#641541) USE 1A024308R |
| 13 | AP9150472 | Washer (#AP9150472) USE 1052 8900 |
| 14 | 976681 | LEFT CYLINDER HEAD (#976681) |
| 15 | 874238 | Circlip (#874238) |
| 16 | 976680 | LEFT CYLINDER HEAD (#976680) |
| 17 | 621914 | SCREW (#621914) |
| 18 | 013763 | PLAIN WASHER (4,2x12x1) (#013763) |
