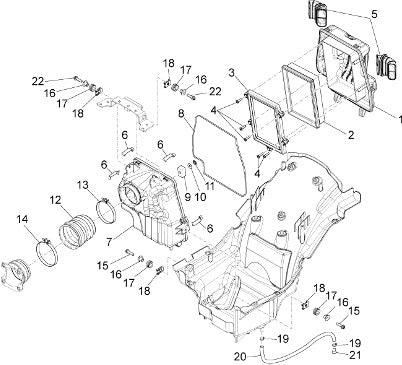

2016 California 1400 Touring SE E3 ABS Air Box
| Position | Part Number | Description |
|---|---|---|
| 1 | 886859 | PACKING (#886859) |
| 2 | AP8104329 | AIR FILTER GRISO, STELVIO , Cali 1400 AP8104329 |
| 3 | 886867 | CLEANER BOX (#886867) |
| 4 | AP8152329 | Self-Tap Screw (#AP8152329) |
| 5 | 886861 | INTAKE MANICOLD (#886861) |
| 6 | 622236 | SPRING (#622236) |
| 7 | 886860 | AIR CLEANER BOTTOM (#886860) |
| 8 | AP8120615 | Gasket (#AP8120615) |
| 9 | B063477 | BLOW-BY FILTER (#B063477) |
| 10 | 567603 | WASHER (#567603) |
| 11 | AP8150450 | Washer for Shafts (#AP8150450) |
| 12 | 886871 | INTAKE MANIFOLD (#886871) |
| 13 | B063957 | Hose clamp (#B063957) |
| 14 | 93306070 | Clamp (#93306070) |
| 15 | AP8152280 | Screw (#AP8152280) |
| 16 | AP8221023 | T Bush* (#AP8221023) |
| 17 | AP8120030 | Rubber Spacer (#AP8120030) |
| 18 | 254485 | SPRING PLATE (M6) (#254485) |
| 19 | AP8101595 | Hose Clamp (#AP8101595) |
| 20 | AP8144038 | Fuel Pipe - Nevada (#AP8144038) |
| 21 | AP8120876 | Plug (#AP8120876) |
| 22 | AP8152279 | Screw w/flange (#AP8152279) |
