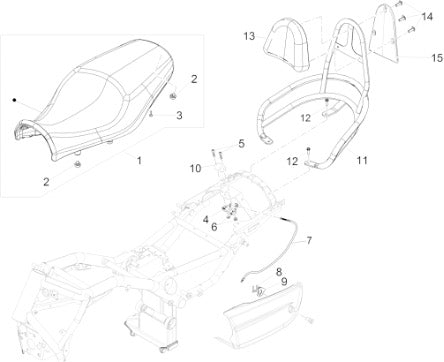

2016 California 1400 Touring SE E3 ABS Body Saddle
| Position | Part Number | Description |
|---|---|---|
| 1 | 88749400C3 | TOURING VERSION SADDLE (#88749400C3) |
| 2 | B064023 | SADDLE PUFFER (#B064023) |
| 3 | B064024 | SADDLE PUFFER (#B064024) |
| 4 | AP8102913 | Pass.saddle connecti (#AP8102913) |
| 5 | AP8152117 | HEX SOCRET SCREW M6X25* (#AP8152117) |
| 6 | AP8152299 | Self-Locking Nut (#AP8152299) |
| 7 | B063439 | Lock cable (#B063439) |
| 8 | 978415 | Plate (#978415) |
| 9 | AP8121420 | Fork Spring (#AP8121420) |
| 10 | 886820 | PLATE (#886820) |
| 11 | 2B001669 | HANDLE WITH BACKREST (#2B001669) |
| 12 | AP8152287 | Screw w/flange (#AP8152287) |
| 13 | 2B001793000C1 | Basckrest cushion delg.black (#2B001793000C1) |
| 14 | AP8152339 | SCREW W/FLANGE (#AP8152339) |
| 15 | 2B001802 | BACKREST COVER (#2B001802) |
