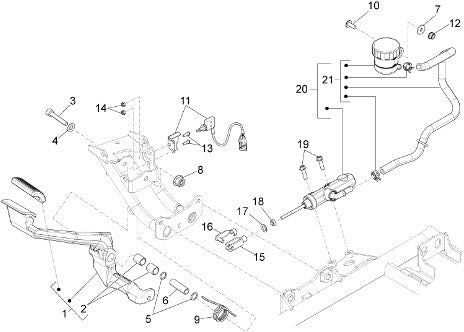

2016 California 1400 Touring SE E3 ABS Brake System Rear Master Cylinder
| Position | Part Number | Description |
|---|---|---|
| 1 | 887556 | COMPLETE REAR BRAKE LEVER (#887556) |
| 2 | 895328 | BUSH (#895328) |
| 3 | 98680475 | Screw, 8x75mm (#98680475) |
| 4 | 95008308 | Washer (#95008308) |
| 5 | AP8144007 | O-Ring (#AP8144007) |
| 6 | B063903 | Spacer (#B063903) |
| 7 | 95005320 | WASHER (#95005320) |
| 8 | AP8152300 | Self-Locking Nut (#AP8152300) |
| 9 | B063328 | TORSION SPRING (#B063328) |
| 10 | 98210616 | Screw (#98210616) |
| 11 | B064022 | DIAGNOSABLE REAR STOP SWITCH KIT (#B064022) |
| 12 | AP8152299 | Self-Locking Nut (#AP8152299) |
| 13 | 98370412 | SCREW (#98370412) |
| 14 | AP8150204 | Nut, 4mm (#AP8150204) |
| 15 | AP8101968 | Fork (#AP8101968) |
| 16 | AP8201301 | Gear Selector Fork Clips (#AP8201301) |
| 17 | AP8120178 | O-ring 112 (#AP8120178) |
| 18 | 92606206 | Nut (#92606206) |
| 19 | AP8152279 | Screw w/flange (#AP8152279) |
| 20 | 887689 | ABS REAR MASTER CYLINDER (#887689) |
| 21 | B064104 | BRAKE OIL TANK (#B064104) |
