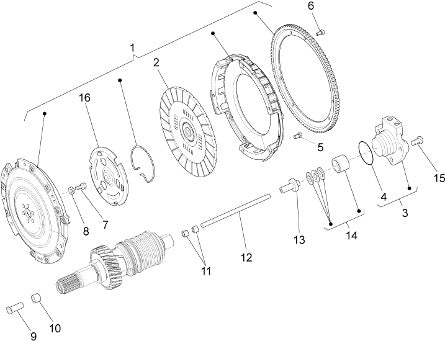

2016 California 1400 Touring SE E3 ABS Clutch
| Position | Part Number | Description |
|---|---|---|
| 1 | 2A000107 | CLUTCH ASSY (2A000107) (#2A000107) |
| 2 | B064100 | B064100 (#B064100) |
| 3 | 85220R | Cylinder (#85220R) |
| 4 | B064271 | SEAL RING (O-RING) (#B064271) |
| 5 | 976535 | SCREW (#976535) |
| 6 | 884044 | SCREW (CYLINDER HEAD) (#884044) |
| 7 | 976481 | SCREW TE FL DA (#976481) |
| 8 | 976484 | Axle Washer (#976484) |
| 9 | B013036 | CLUTCH DRIVE PIPED BILLET (#B013036) |
| 10 | 976564 | BUSH (#976564) |
| 11 | 14085900 | CLUTCH PUSH ROD SEAL (TAKES 2) (#14085900) |
| 12 | 976593 | CLUTCH DRIVE SYSTEM ROD (#976593) |
| 12 | 976594 | CLUTCH DRIVE SYSTEM ROD (#976594) |
| 12 | 976595 | CLUTCH DRIVE SYSTEM ROD (#976595) |
| 12 | 976596 | CLUTCH DRIVE SYSTEM ROD (#976596) |
| 12 | B0630111 | Push rod (#B0630111) |
| 12 | B063012 | Push rod (#B063012) |
| 13 | B013037 | CLUTCH TRUST BEARING SUPPORT (#B013037) |
| 14 | 976696 | KIT CUSCINETTO REGGISPINTA (#976696) |
| 15 | 598839 | SCREW (#598839) |
| 16 | 2A000072 | Release plate (#2A000072) |
