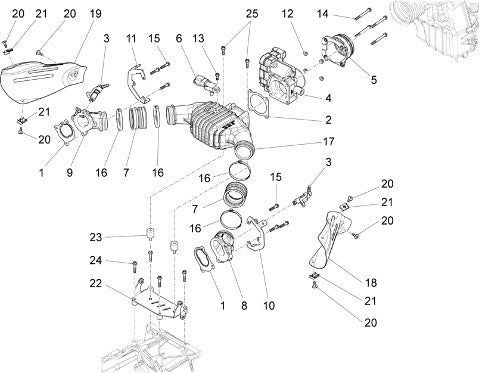

2016 California 1400 Touring SE E3 ABS Throttle Body
| Position | Part Number | Description |
|---|---|---|
| 1 | 887979 | HEAD/CYLINDER PACKING (#887979) |
| 2 | 872264 | GASKET (#872264) |
| 3 | B063442 | Injector (#B063442) Cali 1400 |
| 4 | 872230 | THROTTLE VALVE BODY (#872230) |
| 5 | B063333 | CONNECTION PIPE (#B063333) |
| 6 | 887015 | AIR PRESSURE SENSOR (#887015) |
| 7 | 887808 | INTAKE THROTTLE VALE-BODY/INTAKE FITTING (#887808) |
| 8 | 8871714 | LEFT INTAKE FITTING (#8871714) |
| 9 | 8871724 | RIGHT INTAKE FITTING (#8871724) |
| 10 | B063160 | LEFT COVER BRACKET (#B063160) |
| 11 | B063161 | RIGHT COVER BRACKET (#B063161) |
| 12 | 887282 | T BUSH (#887282) |
| 13 | AP8152278 | #12 Screw w/ flange M6x16* (#AP8152278 ) |
| 14 | B016425 | HEXAGONAL RANGE HEAD SCREW (#B016425) |
| 15 | B017633 | FLAGED HEXAGONAL HEAD SCREW (#B017633) |
| 16 | 857306 | METAL PIPE CLAMP (#857306) |
| 17 | 2A000030 | PLENUM (#2A000030) |
| 18 | B063158 | LEFT INTAKE SYSTEM COVER (#B063158) |
| 19 | B063159 | RIGHT SYSTEM COVER (#B063159) |
| 20 | 976614 | SCREW (CYLINDER HEAD) (#976614) |
| 21 | AP8102375 | Clip (#AP8102375) |
| 22 | 886869 | PLENUM PLATE SUPPORT (#886869) |
| 23 | 93222023 | Silent - Block (#93222023) |
