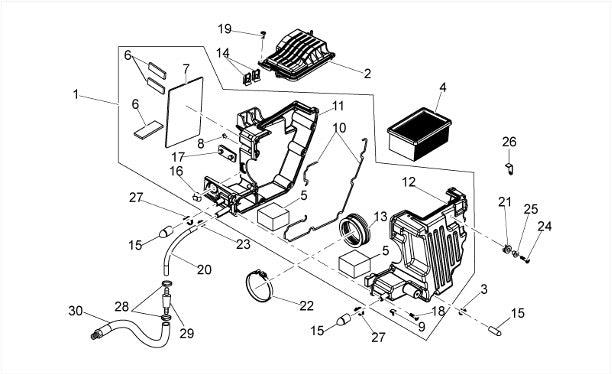

2016 V7 II Racer 750 E3 ABS Frame Air Box II
| Position | Part Number | Description |
|---|---|---|
| 1 | 8878421 | AIR BOX ASSEMBLY (#8878421) |
| 2 | 887843 | AIR FILTER COVER (#887843) |
| 3 | ||
| 4 | ||
| 5 | ||
| 6 | 883127 | Adhesive rubber (#883127) |
| 7 | ||
| 8 | ||
| 9 | ||
| 10 | ||
| 11 | 887844 | AIR BOX RIGHT COVER (#887844) |
| 12 | 887845 | AIR BOX LEFT COVER (#887845) |
| 13 | 887815 | INTAKE HOSE (#887815) |
| 14 | 254485 | SPRING PLATE (M6) (#254485) |
| 15 | ||
| 16 | 890760 | FLY SPRING (#890760) |
| 17 | ||
| 18 | ||
| 19 | ||
| 20 | ||
| 21 | 91551010 | GROMMET (#91551010) |
| 22 | ||
| 23 | ||
| 25 | ||
| 26 | 31112965 | PLATE (#31112965) |
| 27 | ||
| 28 | 28157950 | BREATHER PIPE CLAMP (#28157950) |
| 29 | ||
| 30 |
