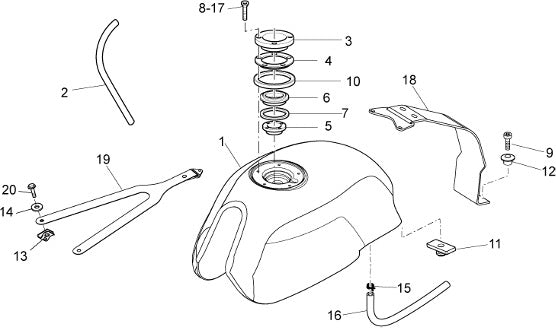

2016 V7 II Racer 750 E3 ABS Frame Fuel Tank
| Position | Part Number | Description |
|---|---|---|
| 1 | ||
| 1 | ||
| 1 | 887944 | Fuel tank (#887944) |
| 2 | ||
| 3 | 03101900 | GAS CAP FLANGE (#03101900) |
| 4 | 03103500 | SPACER (#03103500) |
| 5 | 883502 | UNION (#883502) |
| 6 | 03102200 | GAS CAP SEAT (#03102200) |
| 7 | 03101600 | GAS CAP GASKET (#03101600) |
| 8 | ||
| 9 | 98682430 | Screw (#98682430) |
| 10 | 03102400 | FLANGE GASKET (#03102400) |
| 11 | ||
| 12 | ||
| 13 | 28576591 | CLIP (#28576591) |
| 14 | 95100141 | WASHER (#95100141) |
| 15 | ||
| 16 | 00823944050 | HOSE (#00823944050) |
| 17 | 03103200 | SCREW A (#03103200) |
| 18 | ||
| 18 | ||
| 19 | ||
| 19 | ||
| 20 | 98370616 | BOLT (#98370616) |
