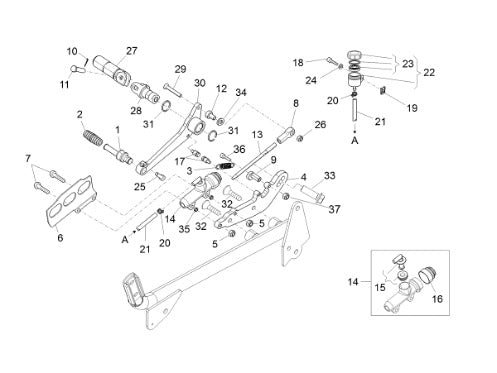

2016 V7 II Racer 750 E3 ABS Frame Rear Master Cylinder
| Position | Part Number | Description |
|---|---|---|
| 1 | 886665 | Brake lever pin (#886665) |
| 2 | ||
| 3 | ||
| 4 | 898288 | RH Plate (#898288) |
| 5 | 92630206 | NUT (#92630206) |
| 6 | 01665410 | REAR MASTER CYL. GUARD (#01665410) |
| 7 | 98370625 | ALLEN SCREW (#98370625) USE STAB6X25 |
| 8 | 18257551 | BLOCK (#18257551) |
| 9 | 886666 | BUSHING (#886666) |
| 10 | 95401215 | COTTER PIN (#95401215) |
| 11 | 23442210 | PIVOT PIN A (#23442210) |
| 12 | 898287 | Brake lever pin (#898287) |
| 13 | ||
| 14 | ||
| 15 | ||
| 16 | ||
| 17 | 898286 | Fixing pin (#898286) |
| 18 | ||
| 19 | ||
| 20 | ||
| 21 | 00823950050 | TUBE (#00823950050) |
| 22 | ||
| 23 | ||
| 24 | 95100059 | WASHER (#95100059) |
| 25 | ||
| 27 | 898281 | Foot rests (#898281) |
| 28 | 898612 | Support (#898612) |
| 29 | ||
| 30 | 898285 | Brake lever (#898285) |
| 31 | ||
| 32 | 98252420 | Screw M8x20 (#98252420) |
| 33 | ||
| 34 | ||
| 35 | ||
| 36 | ||
| 37 |
