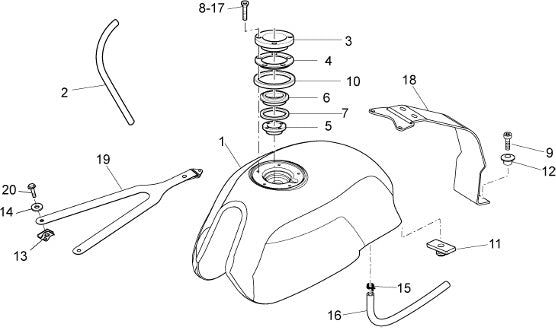

2016 V7 II Racer 750 E3 ABS Fuel Tank
| Position | Part Number | Description |
|---|---|---|
| 1 | 2H000420 | TANK FUEL (#2H000420) |
| 1 | 2H001191000Z1 | Fuel tank, grey/black (#2H001191000Z1) |
| 1 | 887944 | Fuel tank (#887944) |
| 2 | ||
| 3 | 03101900 | GAS CAP FLANGE (#03101900) |
| 4 | 03103500 | SPACER (#03103500) |
| 5 | 883502 | UNION (#883502) |
| 6 | 03102200 | GAS CAP SEAT (#03102200) |
| 7 | 03101600 | GAS CAP GASKET (#03101600) |
| 8 | AP8150416 | HEX SOCKET SCREW M4X20 (#AP8150416) |
| 9 | 98682430 | Screw (#98682430) |
| 10 | 03102400 | FLANGE GASKET (#03102400) |
| 11 | AP8120557 | Tank rubber (#AP8120557) |
| 12 | AP8121673 | T bush * (#AP8121673) |
| 13 | 28576591 | CLIP (#28576591) |
| 14 | 95100141 | WASHER (#95100141) |
| 15 | AP8101595 | Hose Clamp (#AP8101595) |
| 16 | 00823944050 | HOSE (#00823944050) |
| 17 | 03103200 | SCREW A (#03103200) |
| 18 | 2H001195 | REAR BELT FOR FUEL TANK (#2H001195) |
| 18 | B063154 | FUEL TANK STRAP (#B063154) |
| 19 | 2H001194 | FRONT BLACK BELT FOR FUEL TANK (#2H001194) |
| 19 | B063152 | FUEL TANK Strap V7racer (#B063152) |
| 20 | 98370616 | BOLT (#98370616) |
