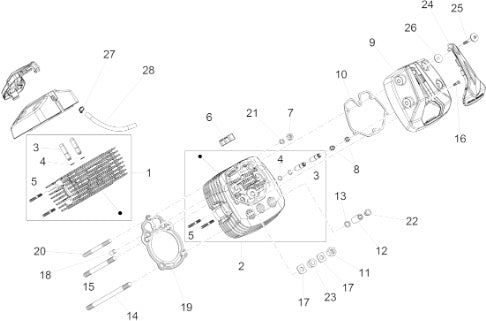

2016 V7 II Stornello 750 E3 ABS 2016 D Cylinder Head
| Position | Part Number | Description |
|---|---|---|
| 1 | 2A000188 | CYLINDER HEAD (#2A000188) |
| 2 | 2A000189 | CYLINDER HEAD (#2A000189) |
| 3 | 61036801 | GUIDE (#61036801) |
| 4 | 90353009 | RING (#90353009) |
| 5 | 96506042 | STUD (#96506042) |
| 6 | B063111 | RUBBER TOP (#B063111) |
| 7 | 19021920 | NUT (#19021920) |
| 8 | 19037820 | VALVE SEAL (#19037820) |
| 9 | 887523 | HEAD COVER (#887523) |
| 10 | 887002 | VALVE COVER GASKET (#887002) |
| 11 | 92603010 | NUT A (#92603010) |
| 12 | ||
| 13 | 95129180 | WAVE WASHER (#95129180) |
| 14 | 96510214 | CYLINDER STUD (#96510214) |
| 15 | 96510181 | Stud Bolt (#96510181) |
| 16 | 98692325 | BOLT (#98692325) |
| 17 | 19032980 | SPACER (#19032980) |
| 18 | 19021360 | BUSHING (#19021360) |
| 19 | B063099 | HEAD/CYLINDER PACKING (#B063099) |
| 20 | 976898 | Stud bolt (#976898) |
| 21 | 61270300 | WASHER (#61270300) |
| 22 | 93180245 | RUBBER PLUG (#93180245) |
| 23 | AP8144071 | Rubber Exhaust (#AP8144071) |
| 24 | 887279 | COVER (887279) (#887279) |
| 25 | 887483 | SPECIAL SCREW (#887483) |
| 26 | 969973 | Washer (#969973) |
| 27 | AP8201358 | Hose Clamp (#AP8201358) |
| 28 | 2B001204 | Blow-by Tube (#2B001204) |
