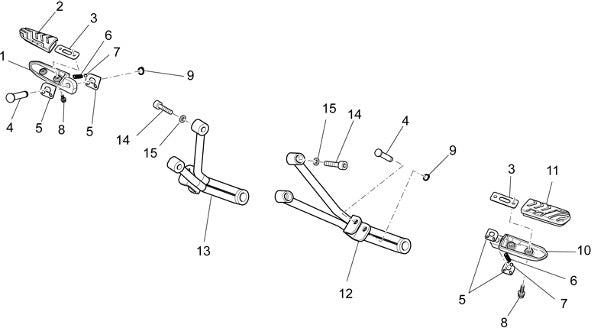

2016 V7 II Stornello 750 E3 ABS 2016 D Rear Footrests
| Position | Part Number | Description |
|---|---|---|
| 1 | 32442310 | Rear Footrest RH - Breva (#32442310) |
| 2 | 32443210 | PEG RUBBER- BREVA (#32443210) |
| 3 | 32441210 | Plate - Breva (#32441210) |
| 4 | CM228401 | PIN (#CM228401) |
| 5 | AP8134451 | Footrest Plate (#AP8134451) |
| 6 | AP8121133 | Coil Compress, Spring (#AP8121133) |
| 7 | AP8101861 | Ball (#AP8101861) |
| 8 | AP8152277 | Screw w/flange (#AP8152277) |
| 9 | AP8120573 | STOP RING D7 DIN 6799 INOX A2 (#AP8120573) |
| 10 | 32442710 | Rear Footrest LH - Breva (#32442710) |
| 11 | 32443211 | Support Rubber Part - Breva (#32443211) |
| 12 | 2B003038 | SUPPORT (#2B003038) |
| 13 | 2B003037 | RH FOOT REST SUPPORT (#2B003037) |
| 14 | 2B002171 | Torx Screw M8X25 pre-applied (#2B002171) |
| 15 | 14615901 | WASHER (#14615901) |
