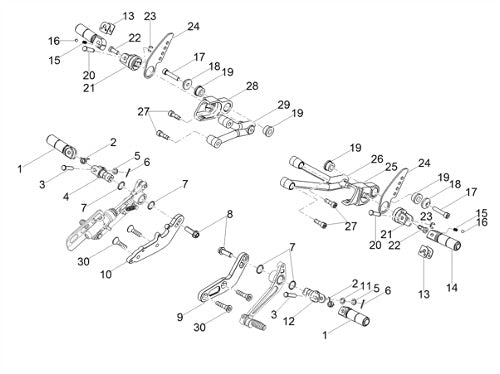

2017 2019 V7 III Racer 750 E4 ABS Foot Rests
| Position | Part Number | Description |
|---|---|---|
| 1 | 898281 | Foot rests (#898281) |
| 2 | AP8221277 | FOOT PEG SPRING (#AP8221277) |
| 3 | 23442210 | PIVOT PIN A (#23442210) |
| 4 | 898612 | Support (#898612) |
| 5 | 95005308 | WASHER M8 (#95005308) |
| 6 | AP8101928 | Split pin (#AP8101928) |
| 7 | AP9100477 | O-ring 18x2 (#AP9100477) |
| 8 | AP8152320 | Screw w/ flange M10x (#AP8152320) |
| 9 | 898284 | LH Plate (#898284) |
| 10 | 898288 | RH Plate (#898288) |
| 11 | AP8150207 | Curved spring washer (#AP8150207) |
| 12 | 898611 | Support (#898611) |
| 13 | AP8134451 | Footrest Plate (#AP8134451) |
| 14 | 2B003872 | Foot rests (#2B003872) |
| 15 | AP8121133 | Coil Compress, Spring (#AP8121133) |
| 16 | AP8101861 | Ball (#AP8101861) |
| 17 | 98690440 | BOLT (#98690440) |
| 18 | AP8134378 | Silencer Fixing Bushing (#AP8134378) |
| 19 | AP8144071 | Rubber Exhaust (#AP8144071) |
| 20 | CM228402 | PIN (#CM228402) |
| 21 | 2B004115 | Support (#2B004115) |
| 22 | 2B004209 | Screw TCEI M8x20 lowered DIN 7984 (#2B004209) |
| 23 | AP8120573 | STOP RING D7 DIN 6799 INOX A2 (#AP8120573) |
| 24 | 2B004117 | Protection (#2B004117) |
| 25 | 2B004116 | SUPPORT (#2B004116) |
| 26 | 2B004122 | LEFT FOOTREST SUPPORT (#2B004122) |
| 27 | 2B002171 | Torx Screw M8X25 pre-applied (#2B002171) |
| 28 | 2B004139 | Right footboard support terminal (#2B004139) |
| 29 | 2B004140 | Right passenger footboard support (#2B004140) |
| 30 | 98252420 | Screw M8x20 (#98252420) |
