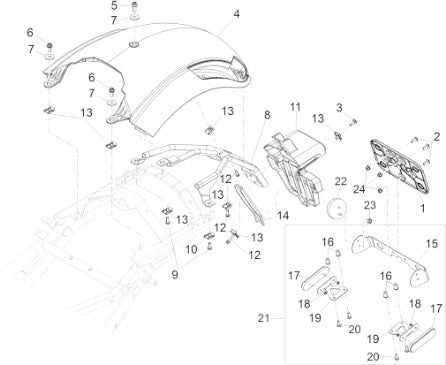

2017 2020 Audace 1400 Carbon E4 ABS Body Rear Mudguard
| Position | Part Number | Description |
|---|---|---|
| 1 | AP8149034 | Number Plate Holder (#AP8149034) |
| 2 | AP8152246 | SCREW W/ FLANGE (#AP8152246) |
| 3 | AP8152339 | SCREW W/FLANGE (#AP8152339) |
| 4 | 2B001788 | Rear mudguard blank (#2B001788) |
| 4 | 2B001788000NI | REAR MUDGUARD (#2B001788000NI) |
| 5 | AP8152285 | Screw w/ flange (#AP8152285) |
| 6 | AP8152273 | Screw w/flange (#AP8152273) |
| 7 | AP8121114 | T bush (#AP8121114) |
| 8 | B063302 | MUDGUARD FRAME (#B063302) |
| 9 | AP8152278 | #12 Screw w/ flange M6x16* (#AP8152278 ) |
| 10 | 254485 | SPRING PLATE (M6) (#254485) |
| 11 | B063303 | REAR NUMBER PLATE HOLDER (#B063303) |
| 13 | AP8102375 | Clip (#AP8102375) |
| 14 | B063870 | REAR NUMBER PLATE HOLDER (#B063870) |
| 15 | 2B000160 | Reflector support (#2B000160) |
| 16 | AP8120531 | Rubber w/ insert * (#AP8120531) |
| 17 | AP8124718 | Rear Reflector, Red (#AP8124718) |
| 18 | AP8150204 | Nut, 4mm (#AP8150204) |
| 19 | 2B000159 | Reflector support (#2B000159) |
| 20 | AP8152298 | Screw w/ flange (#AP8152298) |
| 21 | 2B000082 | USA reflector kit (#2B000082) |
| 22 | AP8224164 | Rear Reflector, Red (#AP8224164) |
| 23 | AP8152306 | Self-Locking Nut (#AP8152306) |
| 24 | AP8152299 | Self-Locking Nut (#AP8152299) |
