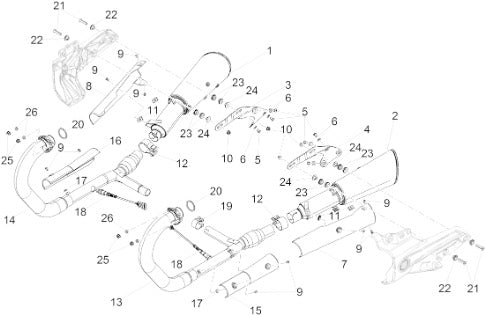

2017 2020 Audace 1400 Carbon E4 ABS Exhaust Pipe
| Position | Part Number | Description |
|---|---|---|
| 1 | 2B0033285 | RIGHT SILENCER (#2B0033285) |
| 2 | 2B0033295 | LEFT SILENCER (#2B0033295) |
| 3 | 2B000366 | MUFFLER BRACKET (#2B000366) |
| 4 | 2B000367 | MUFFLER BRACKET (#2B000367) |
| 5 | AP8152055 | Hex socket screw (#AP8152055) |
| 6 | 95008308 | Washer (#95008308) |
| 7 | 2B0033345 | PAINTED LH SILENCER PROTECTION (#2B0033345) |
| 8 | 2B0033325 | PAINTED RIGHT SILENCER PROTECTION (#2B0033325) |
| 9 | 2B002143 | SCREW HEX SOCKET BUTTON HEAD (#2B002143) |
| 10 | AP8152300 | Self-Locking Nut (#AP8152300) |
| 11 | 254485 | SPRING PLATE (M6) (#254485) |
| 12 | B063293 | Ø 48 METAL PIPE CLAMP (#B063293) |
| 13 | 2B003011 | LH EXHAUST PIPE CYLINDER (#2B003011) |
| 14 | 2B003012 | RH EXHAUST PIPE CYLINDER (#2B003012) |
| 15 | 2B0030075 | LH PAINTED COLLECTOR PROTECTION (#2B0030075) |
| 16 | 2B0030085 | RH PAINTED COLLECTOR PROTECTION (#2B0030085) |
| 17 | 876879 | ELASTIC SPACER (#876879) |
| 18 | 584344 | LAMBDA PROBE (#584344) |
| 19 | B063292 | Ø 37 METAL PIPE CLAMP (#B063292) |
| 20 | 2B002217 | EXHAUST PIPE-ENGINE HEAD GASKET (#2B002217) |
| 21 | B063114 | M8 X 40 COUNTERSUNK SCREW (#B063114) |
| 22 | 887816 | Bush (#887816) |
| 23 | AP8144558 | Rubber spacer (#AP8144558) |
| 24 | AP8121510 | AP8121510 |
| 25 | 92660021 | Nut (#92660021) |
| 26 | 14615901 | WASHER (#14615901) |
