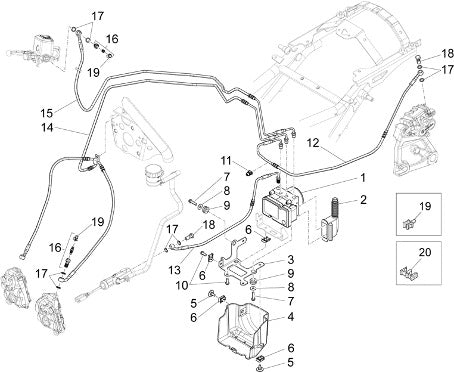

2017 2020 California 1400 Touring E4 ABS Brake System Abs Brake System
| Position | Part Number | Description |
|---|---|---|
| 1 | 2D000193 | FILLED CLUSTER E ABS (SPARE PARTS) (#2D000193) |
| 2 | 860746 | Insulating cap (#860746) |
| 3 | B063211 | HECU SUPPORT PLATE (#B063211) |
| 4 | 887798 | LOWER ABS COVER (#887798) |
| 5 | 976591 | SPECIAL SCREW (#976591) |
| 6 | 254485 | SPRING PLATE (M6) (#254485) |
| 7 | AP8152280 | Screw (#AP8152280) |
| 8 | AP8150015 | Washer 6,6x18x1,6* (#AP8150015) |
| 9 | AP8120030 | Rubber Spacer (#AP8120030) |
| 10 | AP8152278 | #12 Screw w/ flange M6x16* (#AP8152278 ) |
| 11 | AP8121882 | Cable-guide (#AP8121882) |
| 12 | 887585 | ABS HECU-HYDRAULIC REAR BRAKE HOSE (#887585) |
| 13 | 2B001599 | ABS HECU-HYDRAULIC REAR MASTER CYLINDER (#2B001599) |
| 14 | 887583 | ABS HECU-HYDRAULIC FRONT BRAKES HOSE (#887583) |
| 15 | 887582 | ABS HECU-HYDRAULIC FRONT MASTER CYLINDER (#887582) |
| 16 | AP8133945 | Bleeder kit (#AP8133945) |
| 17 | AP8113004 | WASHER 10x14x1,6* (#AP8113004) |
| 18 | AP8113003 | Oil Pipe Screw (#AP8113003) |
| 19 | AP8113070 | Bleed valve cap (#AP8113070) |
| 19 | AP8202238 | Cable-guide hook (#AP8202238) |
| 20 | AP8201808 | Cable-guide D8 (#AP8201808) |
