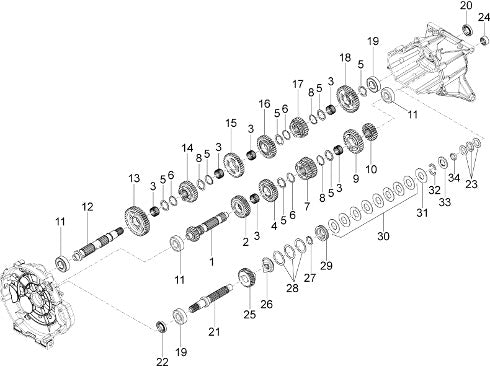

2017 2020 California 1400 Touring E4 ABS Engine Gear Box Gear Assembly
| Position | Part Number | Description |
|---|---|---|
| 1 | 05210631 | Primary Gear Shaft Z=17 (#05210631) |
| 2 | 05215631 | Drive Gears Z=35 (#05215631) |
| 3 | 92252029 | Roller cage 26x30x15,6 (#92252029) |
| 4 | 05212031 | Gear 5A Z=31 (#05212031) |
| 5 | 05214630 | Clearance Washer (#05214630) |
| 6 | 90271230 | Snap Ring30X1,2 Sw (#90271230) |
| 7 | 05211431 | Gear 3A-4A Z=23-26 (#05211431) |
| 8 | 90271030 | Snap Ring 30X27,9 (#90271030) |
| 9 | 976179 | Gear 6a (#976179) |
| 10 | 05211331 | Gear 2A Z=20 (#05211331) |
| 11 | 92201822 | Ball Bearing 20X52X15 (#92201822) |
| 12 | 05213631 | Driven Shaft (#05213631) |
| 13 | 05214231 | Gear 1A Z=38 (#05214231) |
| 14 | 05214031 | Gear 5A Z=30 (#05214031) |
| 15 | 05214731 | Gear 3A Z=31 (#05214731) |
| 16 | 05215031 | Gear 4A Z=29 (#05215031) |
| 17 | 976180 | Gear 6a (#976180) |
| 18 | 05214431 | Gear 2A Z=34 (#05214431) |
| 19 | 92201226 | Ball Bearing 25X52X15 (#92201226) |
| 20 | 90412541 | SEAL (#90412541) |
| 21 | ||
| 22 | 976533 | OIL SEAL (#976533) |
| 23 | 976532 | COMPLETE THRUST NEEDLE ROLLER BEARING (#976532) |
| 24 | 92232028 | Roller Bearing 20X28X13 (#92232028) |
| 25 | 05211131 | Idle Gear Z=26 (#05211131) |
| 26 | 05211231 | Hose (#05211231) |
| 27 | 90271125 | Snap Ring 25X2,1 (#90271125) |
| 28 | 95129340 | Washer (#95129340) |
| 29 | 05211030 | Disc (#05211030) |
| 30 | 05211530 | Belleville Spring (#05211530) |
| 31 | ||
| 32 | ||
| 33 | ||
| 34 |
