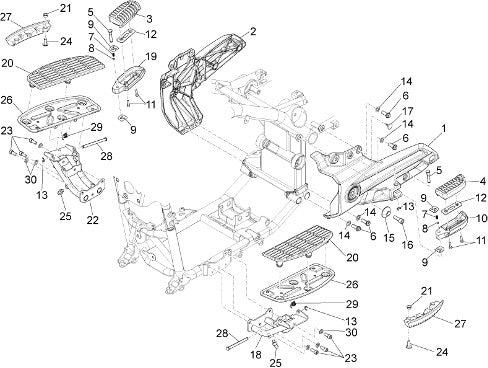

2017 2020 California 1400 Touring E4 ABS Foot Rests
| Position | Part Number | Description |
|---|---|---|
| 1 | 88733100XNB | LH footrest support (#88733100XNB) |
| 2 | 88733000XNB | RH footrest support (#88733000XNB) |
| 3 | B063134 | RH FOOTREST (#B063134) |
| 4 | B063133 | LH FOOTREST (#B063133) |
| 5 | B064101 | PIN (#B064101) |
| 6 | AP8152385 | HEX SOCKET SCREW (#AP8152385) |
| 7 | AP8121133 | Coil Compress, Spring (#AP8121133) |
| 8 | AP8110110 | BALL D.7 (#AP8110110) |
| 9 | B063309 | Passenger support stop plate (#B063309) |
| 10 | B06382100YE4 | LH rear footrest, grey (#B06382100YE4) |
| 11 | AP8150252 | ALLEN SCREW M5X20 Z.N. 8.8 UNI 5931 (#AP8150252) |
| 12 | AP8134857 | Plate (#AP8134857) |
| 13 | AP8120573 | STOP RING D7 DIN 6799 INOX A2 (#AP8120573) |
| 14 | AP8150292 | Curved Spring Washer (#AP8150292) |
| 15 | 851821 | Ring nut (#851821) |
| 16 | 98682530 | Screw (#98682530) USE AP8150195 |
| 17 | AP8120001 | Rubber spacer (#AP8120001) |
| 18 | 887303 | LH footrest support (#887303) |
| 19 | B06382000YE4 | RH rear footrest, grey (#B06382000YE4) |
| 20 | 03447070 | FLOOR BOARD PAD (#03447070) |
| 21 | AP8121929 | Turn indicator bushing (#AP8121929) |
| 22 | 887302 | RH foot rest support (#887302) |
| 23 | 98682420 | Screw (#98682420) |
| 24 | AP8152246 | SCREW W/ FLANGE (#AP8152246) |
| 25 | B063907 | FOOTREST PIN (#B063907) |
| 26 | B063055 | ASSEMBLED FOOTREST (#B063055) |
| 27 | B063931 | SLIDER (#B063931) |
| 28 | CM228403 | PIN (#CM228403) |
| 29 | B063591 | Spring (#B063591) |
| 30 | 95008308 | Washer (#95008308) |
