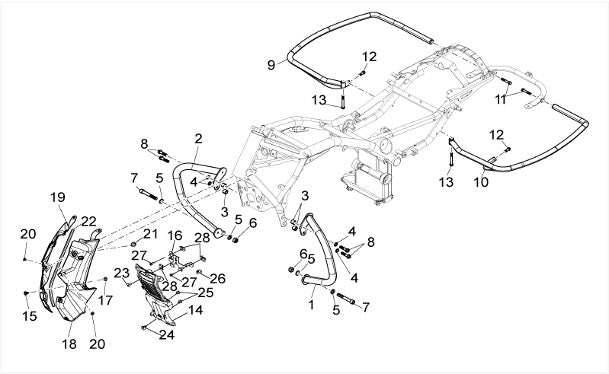

2017 2020 California 1400 Touring E4 ABS Protection
| Position | Part Number | Description |
|---|---|---|
| 1 | B063577 | LH front bumper (#B063577) |
| 2 | B063578 | Right front bumper with I.P. (#B063578) |
| 3 | B063583 | SPACER (#B063583) |
| 4 | AP8150292 | Curved Spring Washer (#AP8150292) |
| 5 | 95129240 | WASHER A (#95129240) |
| 6 | AP8150432 | Low self-locking nut (#AP8150432) |
| 7 | 98690670 | Screw M10x70 (#98690670) |
| 8 | AP8150494 | Screw w/ flange M10x1,25 (#AP8150494) |
| 9 | B063626 | Right bag bumper with I.P. (#B063626) |
| 10 | B063625 | LEFT BAG BUMPER WITH I.P. (#B063625) |
| 11 | AP8152292 | Screw w/ flange M8x5 (#AP8152292) |
| 12 | AP8152287 | Screw w/flange (#AP8152287) |
| 13 | AP8152294 | Screw w/ flange M8x70 (#AP8152294) |
| 14 | 2B002088 | FRONT GRID (#2B002088) |
| 15 | AP8144616 | Rivet, female (#AP8144616) |
| 16 | B064001 | PROTECTION (#B064001) |
| 17 | AP8144563 | Rivet, male (#AP8144563) |
| 18 | B063717 | LEFT COVER STEER (#B063717) |
| 19 | B063716 | RIGHT COVER STEER (#B063716) |
| 20 | AP8150500 | / (#AP8150500) |
| 21 | AP8102375 | Clip (#AP8102375) |
| 22 | 00823931080 | PVC GASKET (#00823931080) |
| 26 | 231590 | ELASTIC CLAMP (#231590) |
| 27 | AP8152272 | Screw w/flange (#AP8152272) |
