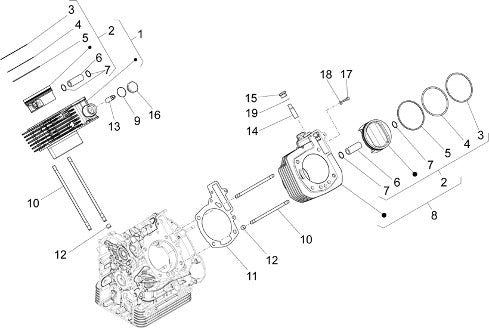

2017 2020 Eldorado 1400 E4 ABS Cylinder Piston
| Position | Part Number | Description |
|---|---|---|
| 1 | B064047 | LEFT CYLINDER WITH IP (#B064047) |
| 2 | 8868810001 | PISTON COMPLETE (#8868810001) |
| 2 | 8868810002 | PISTON COMPLETE (#8868810002) |
| 2 | 8868810003 | PISTON COMPLETE (#8868810003) |
| 3 | 886883 | 1ST COMPRESSION RING TOP (#886883) |
| 4 | 886884 | 2ND COMPRESSION RING (#886884) |
| 5 | 886885 | NIFFLEX - H (#886885) |
| 6 | 886886 | PISTONO PIN (#886886) |
| 7 | 874567 | Circlip (#874567) |
| 8 | B064046 | LEFT CYLINDER WITH IP (#B064046) |
| 9 | B015126 | SEAL RING (O-RING) (#B015126) |
| 10 | 976899 | STUD, MIDDLE ROOT (#976899) |
| 11 | 976312 | CYLINDER CARTER GASKET (#976312) |
| 12 | 825597 | Nozzle for carter (#825597) |
| 13 | 873689 | CHAIN TENSIONER HYDRAULIC RH (#873689) |
| 14 | 873690 | CHAIN TENSIONER HYDRAULIC LH (#873690) use 1A027769 |
| 15 | 976342 | Cap (#976342) |
| 16 | B015125 | CHAIN TENSIONER PLUG (#B015125) |
| 17 | 98350310 | Screw (#98350310) |
| 18 | 95100116 | WASHER (#95100116) |
| 19 | 849866 | Washer (#849866) |
