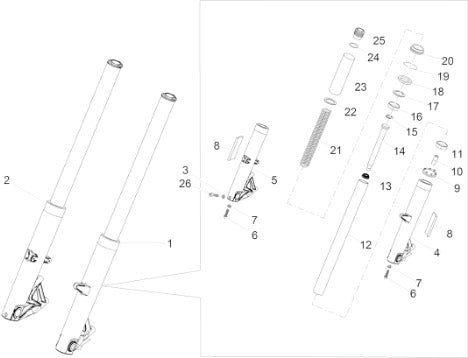

2017 2020 Eldorado 1400 E4 ABS Suspensions Front Fork Kaifa
| Position | Part Number | Description |
|---|---|---|
| 1 | 2B003295 | LH FRONT FORK (#2B003295) |
| 2 | 2B003294 | RH FRONT FORK (#2B003294) |
| 3 | 95005308 | WASHER M8 (#95005308) |
| 4 | 2B003317 | LH FORK LEG (#2B003317) |
| 5 | 2B003318 | RH FORK LEG (#2B003318) |
| 6 | 2B001627 | SCREW (CYLINDER HEAD) (#2B001627) |
| 7 | 2B001630 | WASHER (#2B001630) |
| 8 | 05781630 | Reflector, Amber (#05781630) |
| 9 | 2B002270 | STOPPER RUBBER (#2B002270) |
| 10 | AP8163526 | Stroke limit stop (#AP8163526) |
| 11 | AP8163530 | Bush (#AP8163530) |
| 12 | 2B001635 | FORK STEAM (#2B001635) |
| 13 | 2B001631 | REBOUND SPRING (#2B001631) |
| 14 | 2B001632 | PIPE SEAT (#2B001632) |
| 15 | AP8163518 | Seating molla (#AP8163518) |
| 16 | AP8163524 | Coupling bush (#AP8163524) |
| 17 | AP8163523 | Ring (#AP8163523) |
| 18 | AP8163522 | Oil seal (#AP8163522) |
| 19 | AP8163521 | Stop ring (#AP8163521) |
| 20 | AP8163520 | Dust cover (#AP8163520) |
| 21 | 887892 | Spring (#887892) |
| 23 | 2B001626 | SPRING COLLAR (#2B001626) |
| 24 | AP8163516 | O-ring (#AP8163516) |
| 25 | AP8163515 | Plug (#AP8163515) |
| 26 | 98680445 | Screw (#98680445) |
