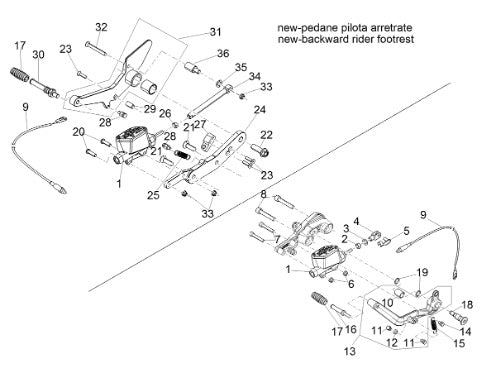

2017 V9 Bobber 850 E4 ABS Brake System Rear Master Cylinder
| Position | Part Number | Description |
|---|---|---|
| 1 | 2B002189 | Rear brake master cylind. with reservoir (#2B002189) |
| 2 | 92606206 | Nut (#92606206) |
| 3 | AP8120178 | O-ring 112 (#AP8120178) |
| 4 | AP8113081 | Fork M6 (#AP8113081) |
| 5 | AP8113082 | Clip (#AP8113082) |
| 6 | 92630206 | NUT (#92630206) |
| 7 | AP8150285 | HEX SOCKET SCREW (#AP8150285) |
| 8 | 98680445 | Screw (#98680445) |
| 9 | 2D0002805 | REAR BRAKE SWITCH (#2D0002805) |
| 10 | 895328 | BUSH (#895328) |
| 11 | 859946 | Springs fixing pin (#859946) |
| 12 | AP8150012 | Washer 5,3x10x1 (#AP8150012) |
| 13 | 2B002233 | SLEEVE (#2B002233) |
| 15 | AP8121927 | Rear brake lever spr (#AP8121927) |
| 16 | ||
| 17 | AP8120912 | Lever rubber (#AP8120912) |
| 18 | 884033 | BRAKE LEVER PIN (884033) (#884033) |
| 19 | AP8144007 | O-Ring (#AP8144007) |
| 20 | 98370625 | ALLEN SCREW (#98370625) USE STAB6X25 |
| 21 | 2B004112 | COUNTERSUCK SOCKED HEAD SCREW (#2B004112) |
| 22 | 967384 | FLANGED HEXAGONAL HEAD SCREW (#967384) |
| 23 | 658778 | SCREW M5, COUNTESUNK HEAD CAP (#658778) |
| 24 | 2B004042 | RH FOOTREST PLATE (#2B004042) |
| 27 | 2B004063 | BRAKE SWITCH SUPPORT (#2B004063) |
| 28 | 898286 | Fixing pin (#898286) |
| 29 | 2B004064 | REAR BRAKE LEVER STOPPER (#2B004064) |
| 30 | 2B004062 | BRAKE/SPEED GEAR LEVER PIN (#2B004062) |
| 31 | 2B004050 | REAR BRAKE LEVER ASSY (#2B004050) |
| 32 | 2B004111 | COUNTERSUCK SOCKED HEAD SCREW (#2B004111) |
| 33 | 92630707 | NUT (#92630707) |
| 34 | 2B004076 | TIE ROD BRAKE PUMP EXTENSION (#2B004076) |
| 35 | 658837 | WASHER, WAVE (#658837) |
| 36 | 2B004107 | FLANGED SPACER (#2B004107) |
