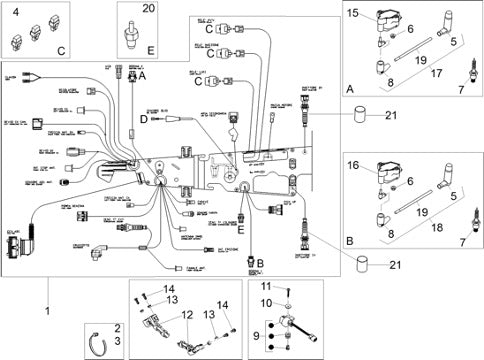

2018 2019 V7 III Carbon Shine 750 E4 Electrical Systems Central Electrical System
| Position | Part Number | Description |
|---|---|---|
| 1 | 2D000332 | MAIN HARNESS (#2D000332) |
| 2 | 49609601 | TIE STRAP (#49609601) |
| 3 | 14609650 | TIE WRAP (#14609650) |
| 4 | AP8224462 | STARTER RELAY 12V20A GRISO-NORGE-BREVA (#AP8224462) |
| 5 | 1A005382 | Screened cap (#1A005382) |
| 6 | AP8152299 | Self-Locking Nut (#AP8152299) |
| 7 | 887481 | SPARK PLUG NGK CPR8EB-9 (#887481) |
| 8 | 641040 | PROTECTION CAP (#641040) |
| 9 | 680212 | ROLL-OVER SENSOR (#680212) |
| 10 | 95005304 | Washer (#95005304) |
| 11 | 478533 | SCREW (#478533) |
| 12 | 2B002901 | SPARK PLUG CABLE SUPPORT (#2B002901) |
| 13 | 2B003052 | T Bush (#2B003052) |
| 14 | 1A003444 | TORX SOCKET HEAD SCREW (#1A003444) |
| 15 | 641901 | H.T. COIL (#641901) |
| 16 | 642034 | H.T. COIL (#642034) |
| 17 | CM277101 | H.T. CABLE (#CM277101) |
| 18 | CM277102 | H.T. CABLE (#CM277102) |
| 19 | 080341 | H.T. CABLE (#080341) |
| 20 | 887421 | TEMPERATURE SENSOR (#887421) |
| 21 | 2D000355 | CAP (#2D000355) |
