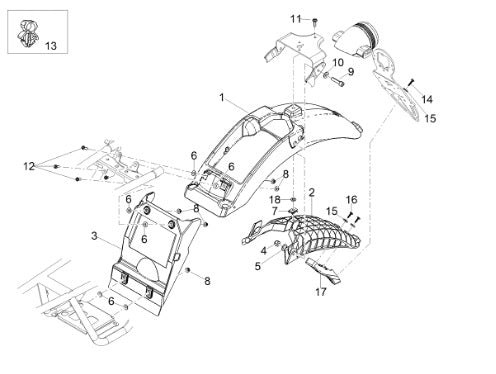

2019 2020 V7 III Stone Night Pack 750 E4 Body Rear Mudguard
| Position | Part Number | Description |
|---|---|---|
| 1 | 2B005908 | (#2B005908) |
| 1 | 2B005908000XN6 | REAR FENDER (#2B005908000XN6) |
| 2 | 2B005909 | REAR COVER (#2B005909) |
| 3 | 2B001783 | MUDGUARD PLATE (#2B001783) |
| 4 | 92630108 | NUT 8MM (#92630108) |
| 5 | 91120806 | SPACER (#91120806) |
| 6 | AP8121032 | Bushing (#AP8121032) |
| 7 | 254485 | SPRING PLATE (M6) (#254485) |
| 8 | AP8152299 | Self-Locking Nut (#AP8152299) |
| 9 | 98690435 | Hex socket screw (#98690435) |
| 10 | 95005310 | WASHER (#95005310) |
| 11 | 2B004560 | HEXAG. HEAD SCREW (#2B004560) |
| 12 | AP8152278 | #12 Screw w/ flange M6x16* (#AP8152278 ) |
| 13 | 2B004088 | CABLE RETAINER FOR THICKNESS 2.5 / 4 mm (#2B004088) |
| 14 | CM180702 | SELF-TAPPING SCREW (#CM180702) |
| 15 | 013763 | PLAIN WASHER (4,2x12x1) (#013763) |
| 16 | CM180701 | SELF-TAPPING SCREW (#CM180701) |
| 17 | 2B006424 | LICENSE PLATE SUPPORT REINFORCEMENT (#2B006424) |
| 18 | 2B006604 | (#2B006604) |
