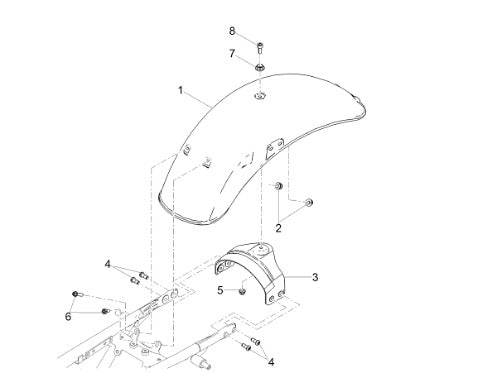

2019 2020 V9 Bobber Sport 850 E4 ABS Body Rear Mudguard
| Position | Part Number | Description |
|---|---|---|
| 1 | 2B002537 | Bobber Rear Mudguard (#2B002537) |
| 1 | 2B002537500NI | Bobber Rear Mudguard (#2B002537500NI) |
| 2 | AP8152299 | Self-Locking Nut (#AP8152299) |
| 3 | 2B002386 | Rera mudguard support (#2B002386) |
| 4 | 2B002311 | TORX BUTTON HEAD SCREW M8x20 (#2B002311) |
| 5 | AP8152300 | Self-Locking Nut (#AP8152300) |
| 6 | CM179301 | METRICAL SCREW (#CM179301) |
| 7 | 2B005425 | (#2B005425) |
| 8 | 98682416 | Hex Socket Screw (#98682416) USE 319165 |
