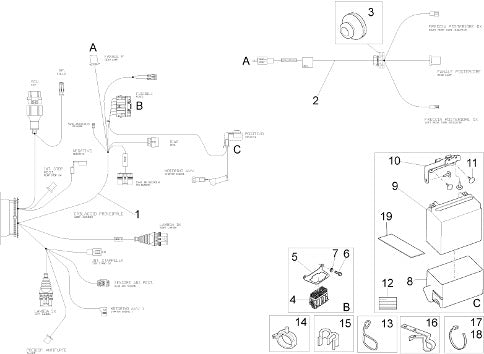

2019 2020 V9 Bobber Sport 850 E4 ABS Electrical Systems Rear Electrical System
| Position | Part Number | Description |
|---|---|---|
| 1 | 2D000209 | CABLE HARNESS (#2D000209) |
| 2 | 2D000245 | REAR LAMP CABLE HARNESS (#2D000245) |
| 3 | 070286 | Cable grommet (#070286) |
| 4 | 584211 | FUSE HOLDER TERM.BOARD 6 (#584211) |
| 5 | 883161 | PLATE (#883161) |
| 6 | 98682212 | Hex Socket Screw (#98682212) |
| 7 | 95100059 | WASHER (#95100059) |
| 8 | 2B002781 | CAP BATTERY (#2B002781) |
| 9 | 638733 | Yuasa YTX14-BS (#638733) |
| 10 | 06418600 | PIASTRA FERMO BATTERIA (#06418600) |
| 11 | AP8120001 | Rubber spacer (#AP8120001) |
| 12 | 32517710 | Decal (#32517710) |
| 13 | AP8181140 | GROMMET (#AP8181140) |
| 14 | CM013202 | STOP CABLE/PIPE SPRING (#CM013202) |
| 15 | 894704 | Fairlead (#894704) |
| 16 | B043850 | Hose clamp (#B043850) |
| 17 | 14609650 | TIE WRAP (#14609650) |
| 18 | 49609601 | TIE STRAP (#49609601) |
| 19 | AP8144552 | Support rubber part (#AP8144552) |
