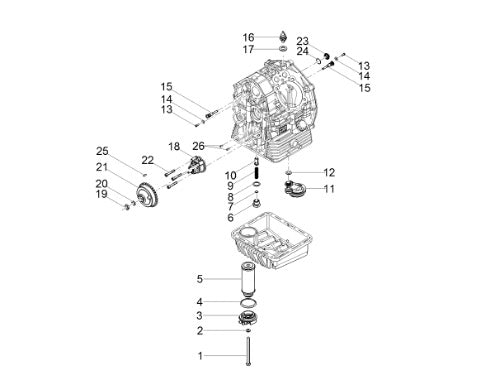

2019 V7 III Milano 750 E4 ABS Engine Lubrication
| Position | Part Number | Description |
|---|---|---|
| 1 | 27152885 | BOLT (#27152885) |
| 2 | 12154200 | OIL LINE CRUSH WASHER (#12154200) |
| 3 | ||
| 4 | 90706444 | O RING (#90706444) |
| 5 | ||
| 6 | 31159050 | Plug (#31159050) |
| 7 | 95008206 | WASHER (#95008206) |
| 8 | 18144350 | CRUSH WASHER (#18144350) |
| 9 | 94321079 | SPRING (#94321079) |
| 10 | ||
| 11 | ||
| 12 | 237553 | O-ring for breather (#237553) |
| 13 | ||
| 14 | 013763 | PLAIN WASHER (4,2x12x1) (#013763) |
| 15 | ||
| 16 | ||
| 17 | 95100309 | Washer (#95100309) |
| 18 | ||
| 19 | 92602510 | NUT (#92602510) |
| 20 | ||
| 21 | 20147710 | PUMP GEAR HD (#20147710) |
| 22 | ||
| 23 | ||
| 24 | 285536 | O-RING GASKET 31.47x1.78 (#285536) |
| 25 | 92296723 | PUMP KEY A (#92296723) |
| 26 | 19018920 | PEG (#19018920) |
