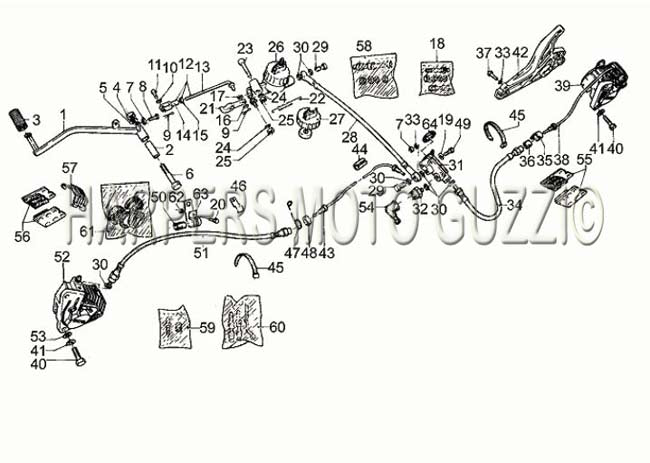

1979 1983 Sp 1000 Front Lh Rear Brake System
| Position | Part Number | Description |
|---|---|---|
| 1 | 17677050 | PEDAL (#17677050) |
| 2 | 17252050 | BUSH (#17252050) |
| 3 | 14251001 | SHIFT AND BRAKE PEDAL RUBBER (#14251001) |
| 4 | 92701120 | NUT (#92701120) |
| 5 | 17252750 | WASHER (#17252750) |
| 6 | 30252360 | PIVOT BOLT A USE 17252350 (#30252360) |
| 7 | 92602206 | NUT (#92602206) USE STHN6MM |
| 8 | 98054320 | BOLT (#98054320) |
| 9 | 95500222 | SPLIT PIN (#95500222) |
| 10 | 95129110 | WASHER (#95129110) |
| 11 | 95770265 | PIN (#95770265) |
| 12 | 17675051 | ROD (#17675051) |
| 13 | 17675151 | TIE ROD (#17675151) |
| 14 | 95740175 | FORK CHROME (#95740175) |
| 15 | 92690073 | NUT (#92690073) |
| 16 | 95100173 | WASHER (#95100173) |
| 17 | 95129130 | SHAKE PROOF WASHER (#95129130) |
| 18 | 14659450 | REV.KIT (#14659450) |
| 19 | 95001206 | WASHER (#95001206) |
| 20 | 98260416 | SCREW (#98260416) |
| 21 | 17667551 | LEVER (#17667551) |
| 22 | 17667651 | SPRING (#17667651) |
| 23 | 98620440 | SCREW (#98620440) |
| 24 | 95021108 | WASHER (#95021108) |
| 25 | 92602208 | NUT (#92602208) |
| 26 | 29667000 | MASTER CYL REAR (#29667000) |
| 27 | 18667450 | Brake reservoir cap (#18667450) |
| 28 | 18658560 | BRAKE HOSE (#18658560) |
| 29 | 95990028 | SCREW (#95990028) |
| 30 | 25656100 | WASHER, ALUMINUM (#25656100) |
| 31 | 18668560 | BRAKE VALVE (#18668560) |
| 32 | 63657000 | BRAKE LIGHT SWITCH (#63657000) |
| 33 | 95021106 | WASHER, WAVE (#95021106) |
| 34 | ||
| 35 | 62436500 | BRACKET (#62436500) |
| 36 | 90716142 | SLEEVE (#90716142) |
| 37 | 98054314 | SCREW (#98054314) |
| 38 | 17658650 | PIPE (#17658650) |
| 39 | 18653060 | F09 CALIPER SP 1 (#18653060) |
| 40 | 98054530 | BOLT (#98054530) |
| 41 | 95004210 | WASHER (#95004210) |
| 42 | 18635860 | BRACKET (#18635860) |
| 43 | 17658750 | PIPE (#17658750) |
| 44 | 17659650 | TUBE (#17659650) |
| 45 | 14609650 | TIE WRAP (#14609650) |
| 46 | 93301313 | BRACKET (#93301313) |
| 47 | 17659750 | BRACKET (#17659750) |
| 48 | 91551120 | GROMMET (#91551120) |
| 49 | 98074320 | SCREW (#98074320) |
| 50 | 17658260 | RUBBER RING (#17658260) |
| 51 | 17658860 | FLEX HOSE (#17658860) |
| 52 | 28652301 | CALIPER RH (#28652301) |
| 53 | 95100332 | SHIM 0.5 MM (#95100332) |
| 53 | 95100333 | SHIM 0.8 MM (#95100333) |
| 54 | 12735100 | CAP (#12735100) |
| 55 | 18654660 | BRAKE PADS/PAIR (131124) (#18654660) |
| 56 | 28654601 | (#28654601) |
| 57 | 14654700 | COVER NLA (#14654700) |
| 57 | 17654760 | COVER (#17654760) |
| 58 | 17659350 | Rear Master Cylinder Kit (Front for T) (#17659350) |
| 59 | 17659260 | BLEEDER SCREW KIT (#17659260) |
| 60 | 14659100 | BRAKE PINS KIT 2 PER BAG (#14659100) |
| 60 | 18659150 | PIN KIT (#18659150) |
| 61 | 14659000 | CALIPER KIT (#14659000) |
| 62 | 92630104 | NUT (#92630104) |
| 63 | 17658360 | CLAMP (#17658360) |
| 64 | 18669360 | CONTROL VALVE CAP (#18669360) |
