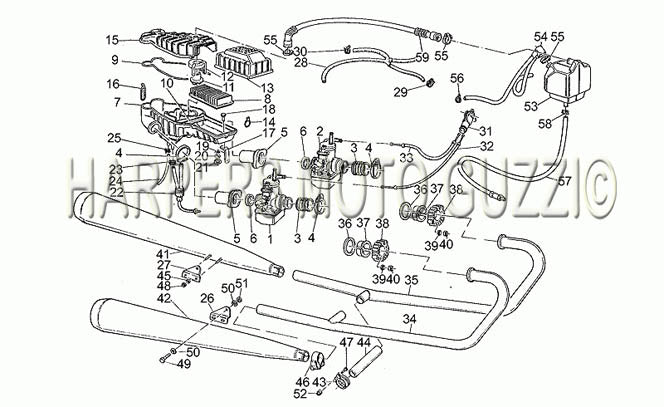

1982 1985 V 65 Custom 650 Fuel Supply Exhaust
| Position | Part Number | Description |
|---|---|---|
| 1 | 19112660 | RH CARB (#19112660) |
| 2 | 19112661 | LH CARB (#19112661) |
| 3 | 19114360 | INTAKE SLEEVE USE 31114383 (#19114360) |
| 4 | 93305032 | CLAMP (#93305032) |
| 5 | 19114460 | AIR INTAKE (#19114460) |
| 6 | 19114680 | RING (#19114680) |
| 7 | 19114060 | FILTER HOUSING (#19114060) |
| 8 | 28113650 | AIR FILTER CA II, LM 1000, SPII & OTHERS (#28113650) |
| 9 | 19113960 | GASKET (#19113960) |
| 10 | 19112960 | BRACKET (#19112960) |
| 11 | 19111060 | PROTECTION (#19111060) |
| 12 | 19111160 | COVER (#19111160) |
| 13 | 19113760 | COVER (#19113760) |
| 14 | 31110715 | RETAINER SPRING (SMALL) (#31110715) |
| 15 | 19113460 | FILTER BOX UPPR (#19113460) |
| 16 | 31110815 | RETAINER SPRING (BIG) (#31110815) |
| 17 | 31114165 | Bracket, AIR FILTER (#31114165) |
| 18 | 98054214 | BOLT (#98054214) |
| 19 | 95021105 | LOCK WASHER (#95021105) |
| 20 | 95000205 | WASHER (#95000205) |
| 21 | 92670305 | WING NUT (#92670305) |
| 22 | 19154360 | PIPE (#19154360) |
| 23 | 61108400 | CLAMP (#61108400) |
| 24 | 00823944050 | HOSE (#00823944050) |
| 25 | 35108450 | HOSE CLIP (#35108450) |
| 26 | 23128660 | PLATE (#23128660) |
| 27 | 23128760 | PLATES (#23128760) |
| 28 | 29106500 | FUEL PIPE (#29106500) USE 29106551 |
| 30 | 61108500 | CLIP (#61108500) |
| 31 | 23133100 | CHOKE LEVER ASSEMBLY WAS 27133160 (#23133100) |
| 32 | 19133560 | CABLE (#19133560) |
| 33 | 19134000 | CABLE (#19134000) |
| 34 | 19120765 | RH EXH PIPE/USA (#19120765) |
| 35 | 19120766 | LH EXH PIPE/USA (#19120766) |
| 36 | 19025280 | GASKET, EXHAUST (#19025280) |
| 37 | 61025400 | SPACER EACH 1/2 (#61025400) |
| 38 | 19121050 | HEADER PIPE FLANGE (#19121050) |
| 39 | 61013800 | SPRING WASHER (#61013800) |
| 40 | 92701062 | NUT (#92701062) |
| 41 | 19122960 | MUFFLER LH V65C/V65SP S191 (#19122960) |
| 42 | 19123060 | MUFFLER RH V65C/V65SP S191 (#19123060) |
| 43 | 61126920 | CLAMP (#61126920) |
| 44 | 23121180 | CONN PIPE (#23121180) |
| 45 | 61270300 | WASHER (#61270300) |
| 46 | 14126900 | CLAMP CHROME (#14126900) USE 30123430 |
| 47 | 61127520 | A/M BOLT (#61127520) |
| 48 | 92602208 | NUT (#92602208) |
| 49 | 98054535 | BOLT (#98054535) |
| 50 | 95021110 | WASHER (#95021110) |
| 51 | 92602410 | NUT (#92602410) |
| 52 | 61127220 | Ring Nut (#61127220) |
| 53 | 27153460 | BREATHER TANK USE 31153481 (#27153460) |
| 54 | 27159660 | BREATHER HOSE A (#27159660) |
| 55 | 93305018 | CLAMP A (#93305018) |
| 57 | 27159360 | HOSE USE 32159310 (#27159360) |
| 59 | 27157420 | USE 30157430 (#27157420) |
